Teclado mecánico personalizado inalámbrico Keychron Q3 Max QMK/VIA (diseño ANSI de EE. UU.)

SKU: Q3M-M1
€209,00

Tipo
Color
interruptores

La versión Totalmente Ensamblada incluye:
  • La PCB del teclado, la carcasa y la placa de la PC.
  • Teclas (incluidas teclas de Mac y Windows).
  • Interruptores.

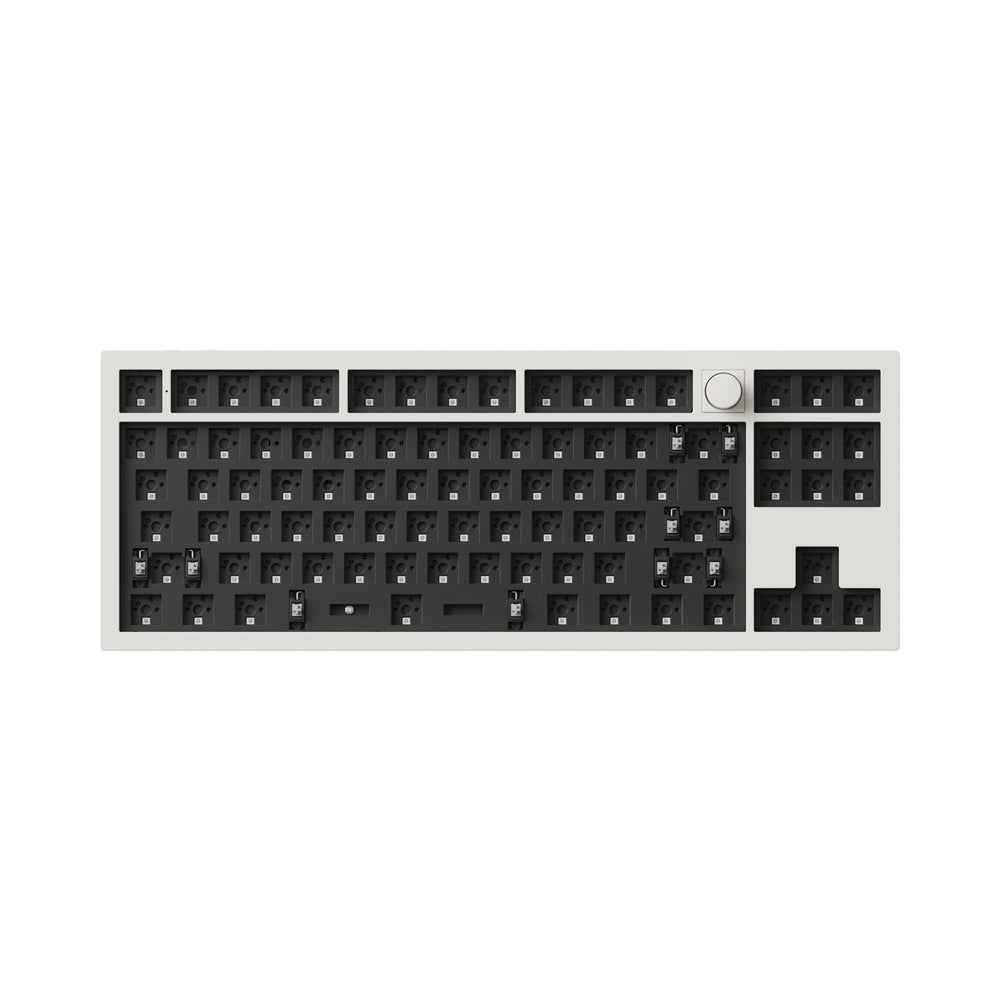

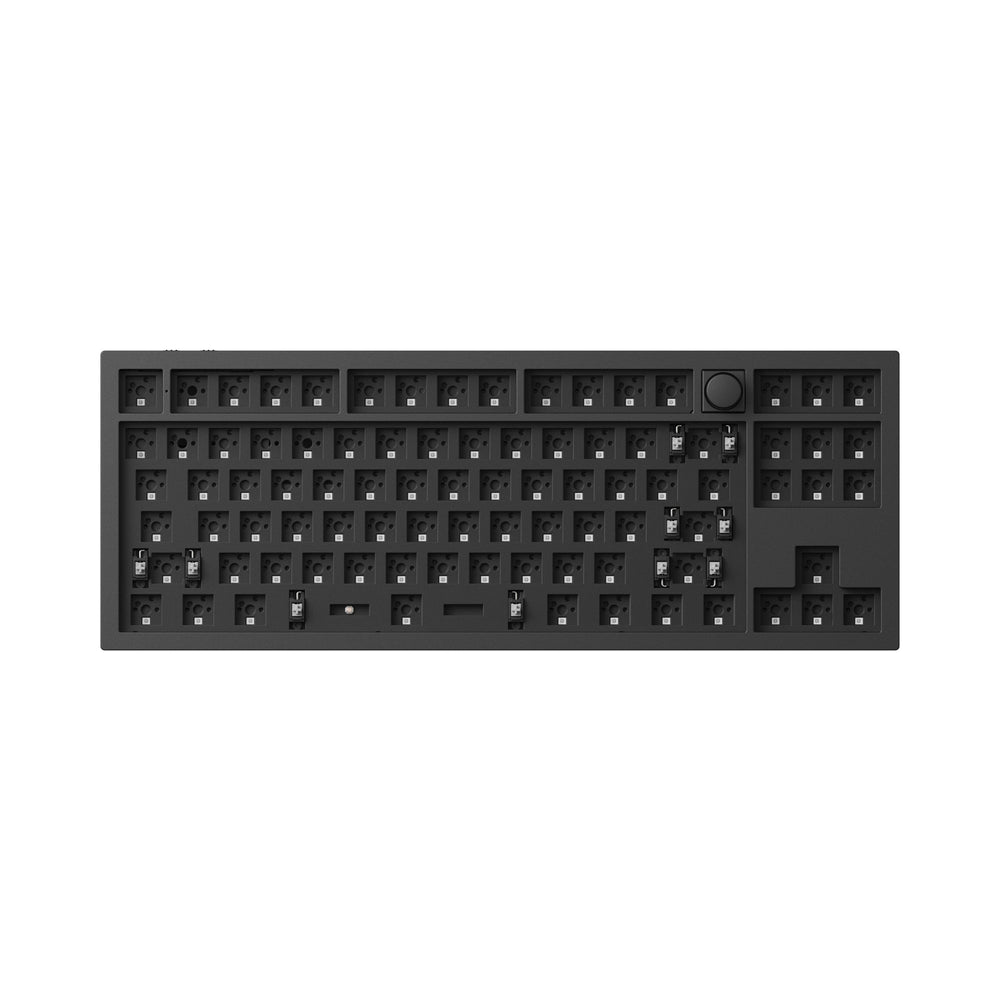

La versión Barebone no incluye teclas ni interruptores.

No se pueden utilizar códigos de descuento para el Q3 Max.

Por favor envíe su correo electrónico a "Notificarme cuando esté disponible" si el modelo del producto está agotado.

Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard

Keychron Q3 Max

Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard

The Q3 Max Keyboard, featuring an 80% TKL layout, combines advanced 2.4G wireless, Bluetooth, and Type-C wired connectivity, enhances workspaces by reducing clutter and facilitating efficient remote work. Its upgraded acoustic foam not only ensures quieter typing but also elevates the tactile experience, making each keystroke smoother and more refined.

Features of Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard
Customize Your Q3 Max

Choose the switches and more keyboard accessories for your Q3 Max

Double-Shot PBT Keycaps

The double-shot PBT keycaps of the Q3 Max provide excellent oil resistance and prevent the legends from fading out. Additionally, the keyboard offers two different keycap options to meet varying preferences and needs.

KSA Keycaps

Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard

Adopting an ergonomic design and classic appearance, it's ideal for standard typing situations.

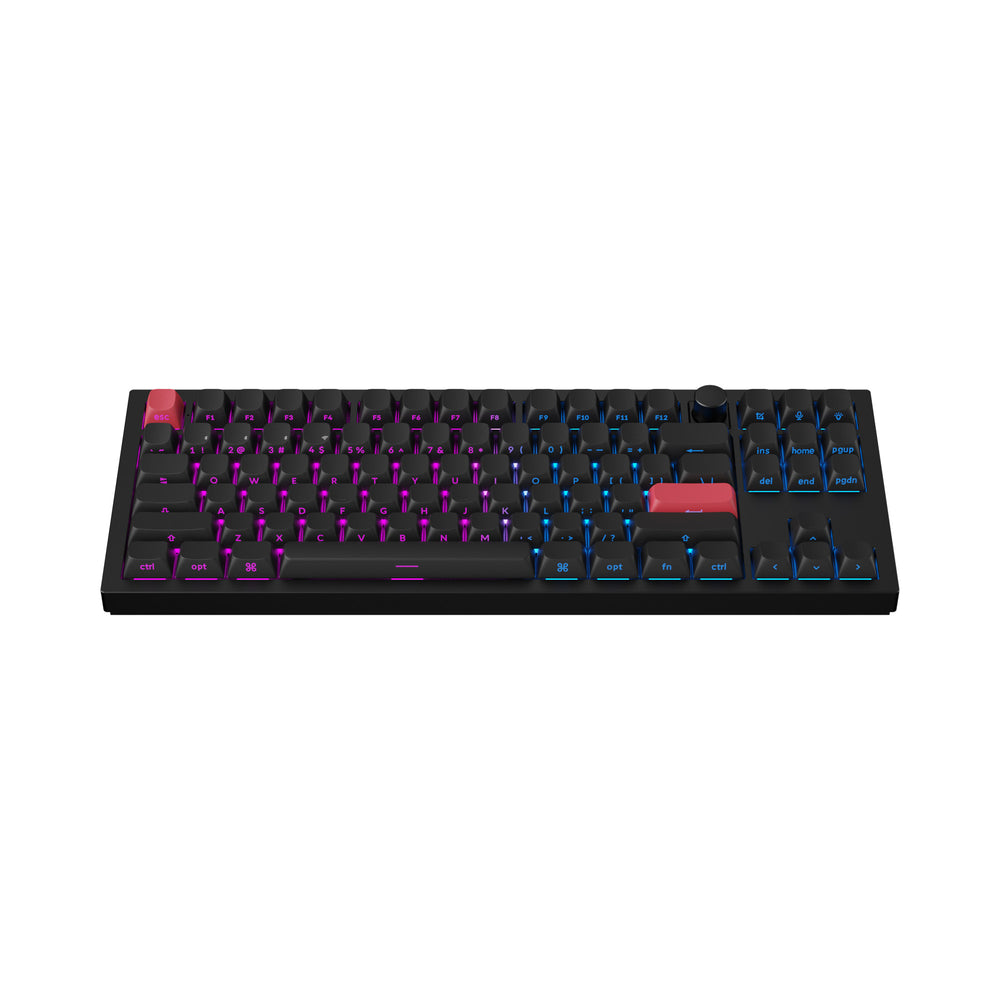

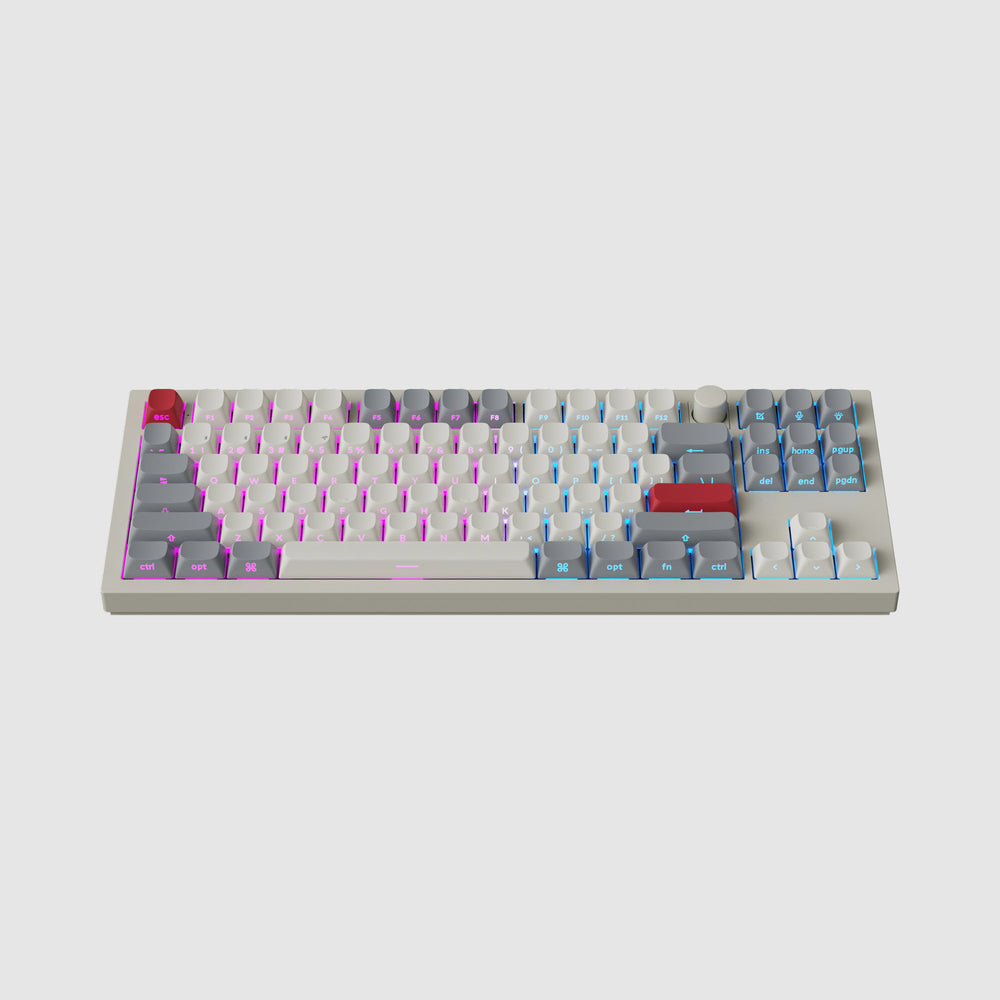

OSA Side-Printed Shine-Through Keycaps

Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard

Less distracting during use and provides a fantastic backlight shine-through effect.

Significantly Enhanced
Acoustic Foams

Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.

Easy Assemble

We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.

Structure of Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard

2.4 GHz & Bluetooth Connection

Discover enhanced performance with the Q3 Max Keyboard, featuring a 2.4 GHz wireless connection and a rapid 1000 Hz polling rate for responsive use. It also offers Bluetooth 5.1 connectivity, allowing easy and efficient multitasking by connecting with up to three devices, such as your computer, phone, and tablet, with quick switching capability.

Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q3 Max.

Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard

Hot-Swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

Double Gasket Design of Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility with Windows devices, the Keychron Q3 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard

Programmable Knob

Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard

You can easily customize the Q3 Max's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Setting the macros for "zoom in/out"

Using the knob as "zoom in/out"

Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard
Launcher

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Click here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

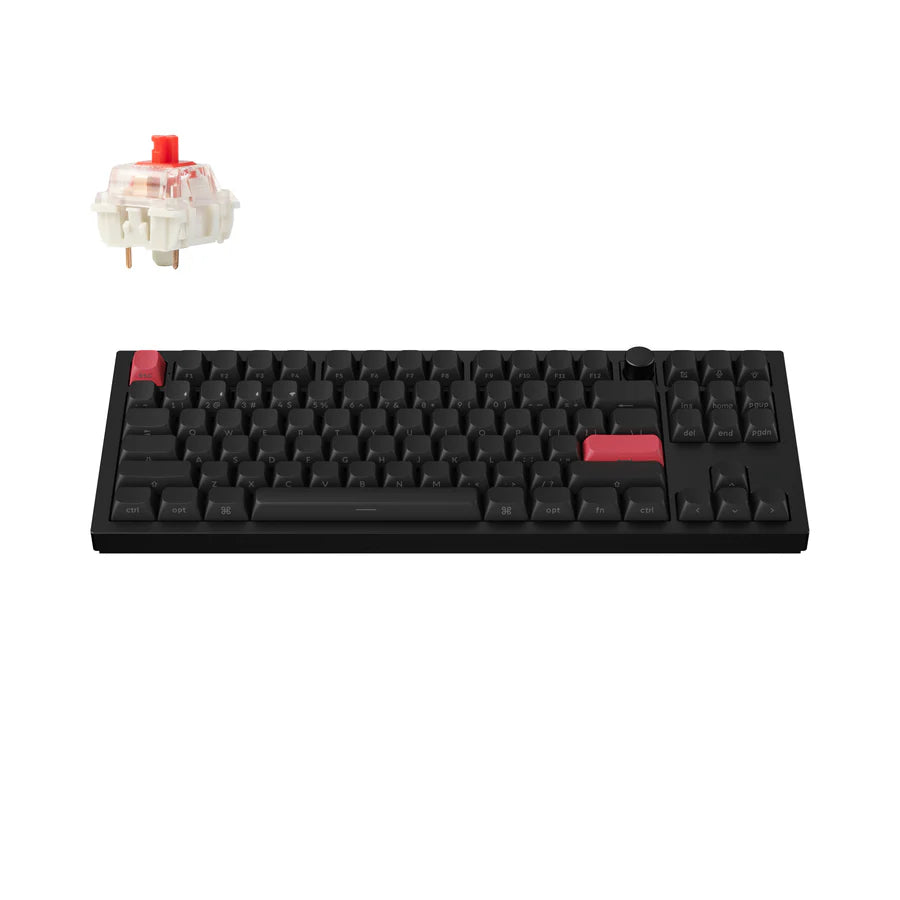

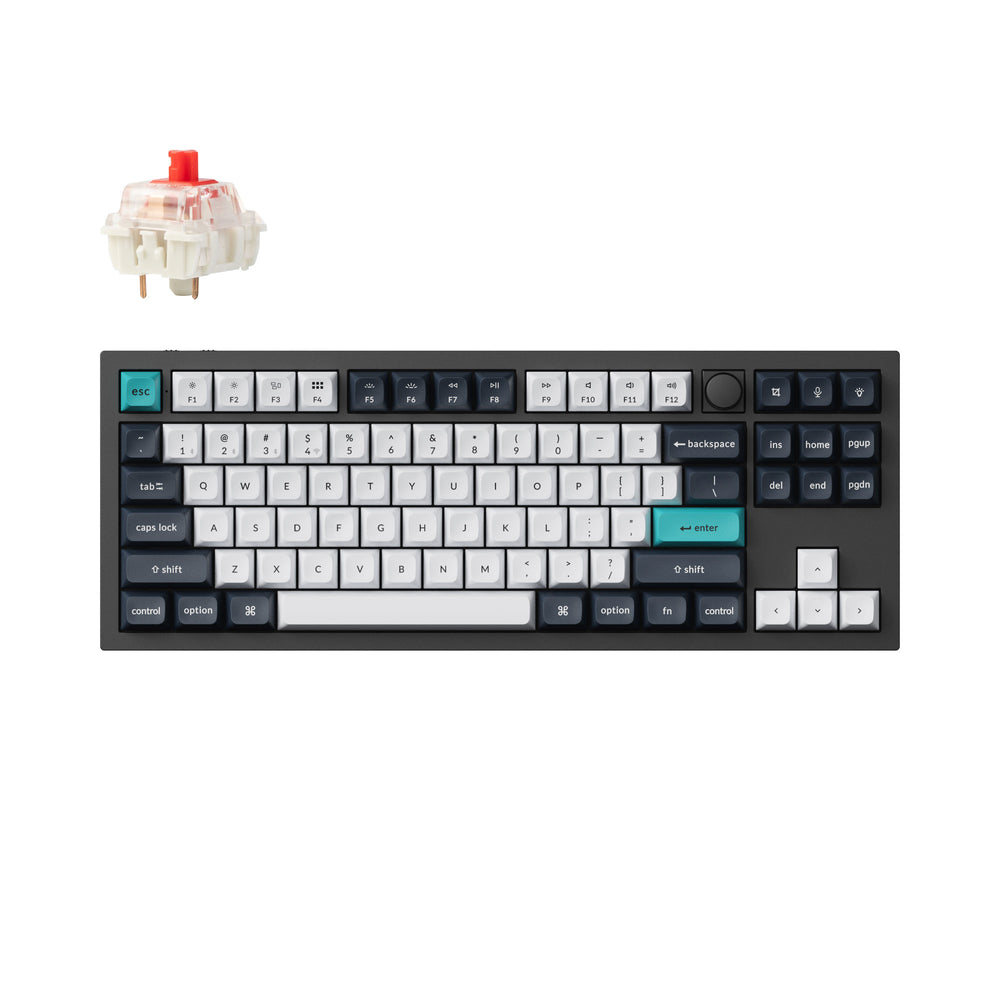

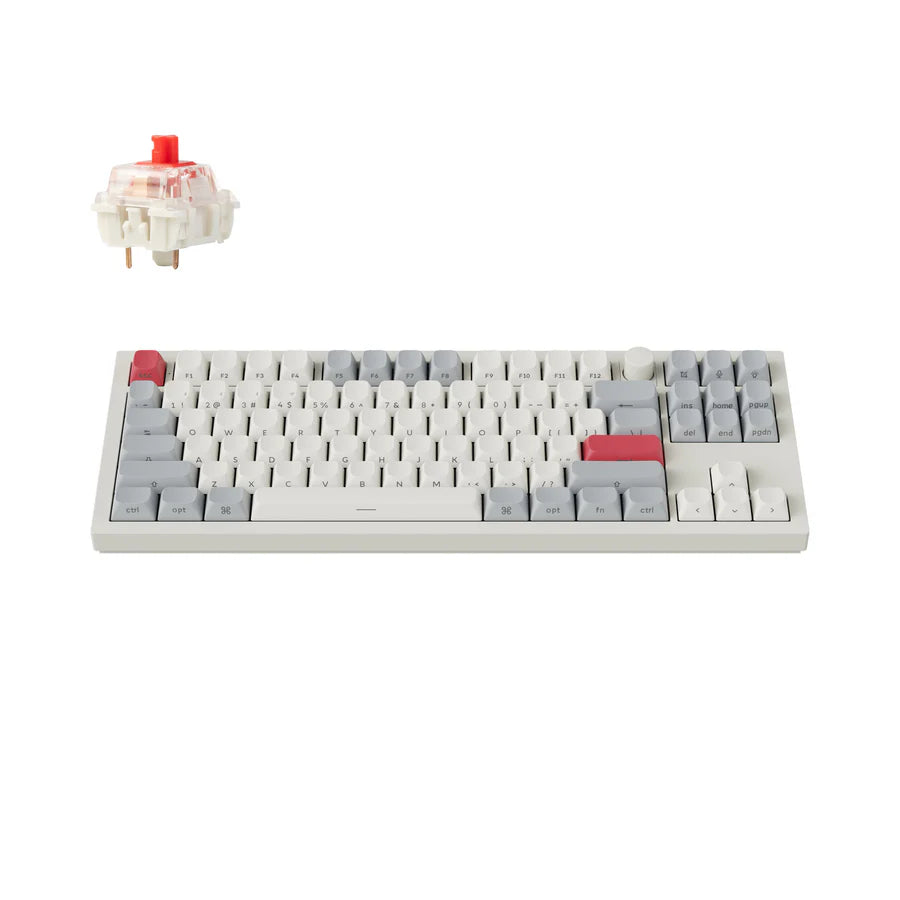

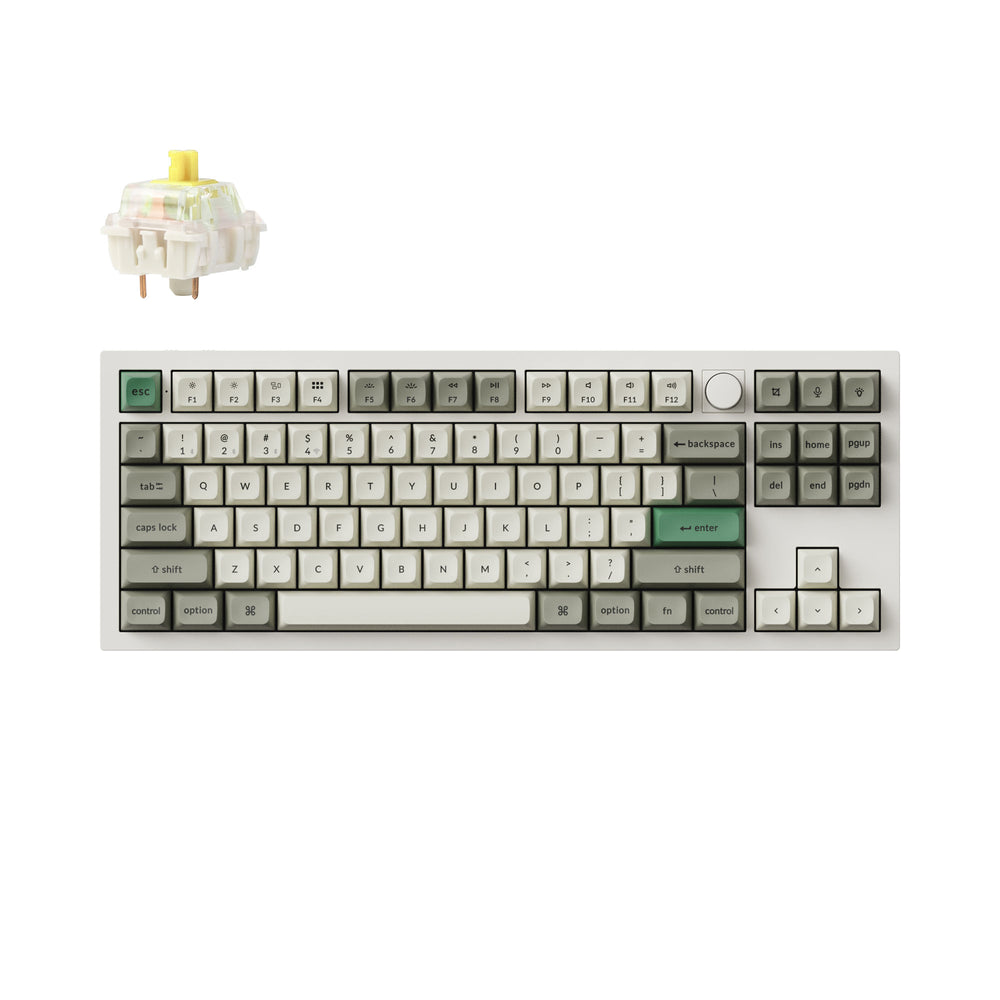

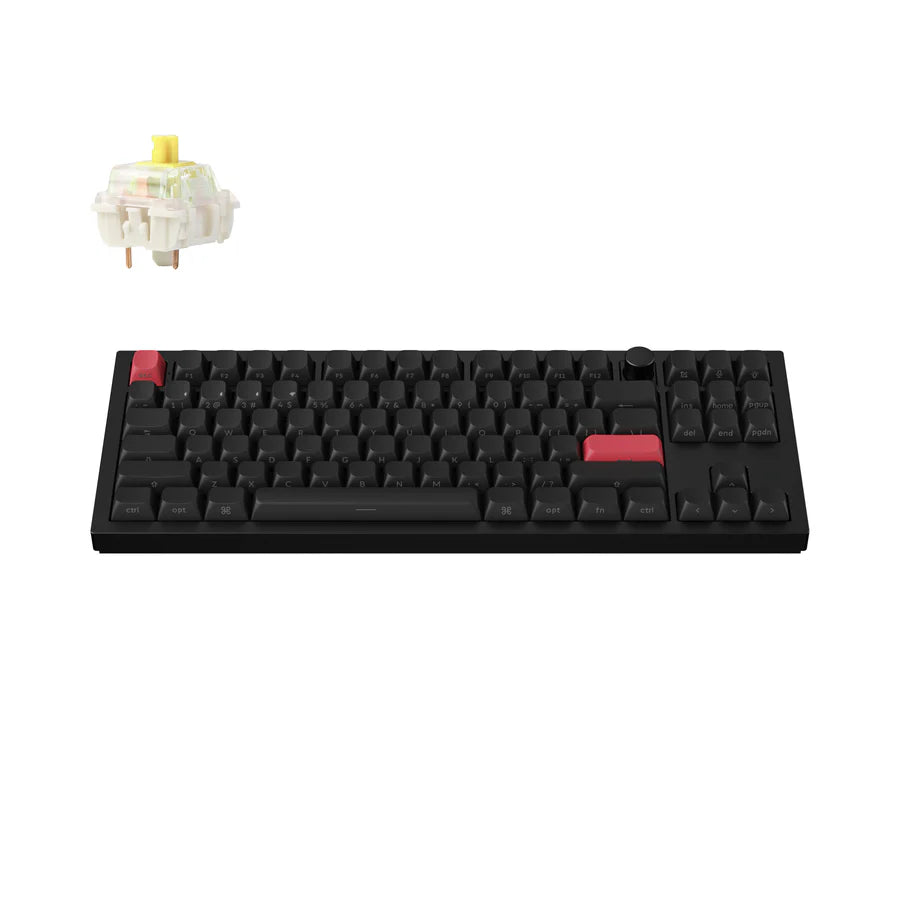

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.

Gateron Jupiter Switch Features
All New Screw-in PCB Stabilizers

All New Screw-in PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron Q3 Max also supports third-party screw-in PCB stabilizers.

What's in the box?

Package list of Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard
Package list of Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard Barebone

Specs

Width137 mm
Length365 mm
Front Height19.7 mm (without keycaps)
Back Height32.6 mm (without keycaps)
Feet Height2.7 mm
Angle5.2°
Weight2045g ± 10g (Fully Assembled Version)
Body MaterialAluminum
PlatePC
CableType-C cable + Type-A to Type-C adapter
Charging Time Around 5 hours
Charging Port USB type-C
Backlight  22 types of RGB backlight options plus endless possibilities
KeycapKSA double-shot PBT keycaps, not shine-through (Fully Assembled version)
SwitchGateron Jupiter (Fully Assembled version)
StabilizerScrew-in PCB stabilizer
BacklightSouth-facing RGB LED
Hot-swappableYes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Polling Rate1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth)
N-Key Rollover (NKRO)Yes for both wireless and wired modes
Cable Length 1.8 m
Switch Support Hot-swappable (5 pin & 3 pin)
Battery4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off)Up to 180 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB)Up to 100 hours (Lowest brightness)
Bluetooth Version5.1
Compatible SystemmacOS/Windows/Linux
Connectivity2.4 GHz / Bluetooth / Type-C wired
Bluetooth Device NameKeychron Q3 Max
Operating Environment-10 to 50℃
Keychron Q3 Max User Guide

Learn more about the Keychron Q3 Max such as the Q3 Max shortcuts, assembling the Q3 Max, factory reset, and more in the FAQ section.

Customer Reviews

Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Miguel Ribeiro
Probably my last keyboard

Cons:
*Q3 max is not yet merged into Qmk_firmware proper (you need to use the wireless_playground branch on keychron's repo)
*There is no support for Vial (that I could find)
*The side "printed" pbt doubleshot keycaps, need a high luminosity RGB mode so that the markings can be seen
*Shift and Space keys produce sound which is much louder than the other keys

Pros:
About everything else! Its a looker!

S
Salvador P.
Awesome keyboard

It's a really good keyboard, the finishes and the weight are outstanding.

The only thing that I expected to be more deeper is the sound when typing, I expected it to be more low in tone, but well sound is difficult and everyone hears differently, so it's ok.

The keyboard works straight out of the box, I tested the Bluetooth connection, wired, and wireless and all of them work really well.

Overall really good keyboard, and I'm happy with it, the 4 stars rating is as I stated before, are because of the sound I expected it to be deeper, since we are paying more for that build and materials to improve the sound.
Looking for a better sound I tried with ASA keycaps and Gazzew Boba LT switches, and it improved a lot.

So I'm happy with it.
