Colección de diseño ISO de teclado mecánico personalizado inalámbrico Keychron V5 Max QMK

Keychron V5 Max

ISO Layout Collection

The V5 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. Coming in an 1800 compact layout, it offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more to take your typing experience to a new level, delivering enhanced comfort and productivity.

Choose the keycaps, switches, and more accessories for your V5 Max

V5 Max ISO Layout Versions

These versions include the UK, German, Swiss, Spanish, French, and Nordic layouts, all with extra keycaps suitable for Mac and Windows devices.

🇪🇸 Spanish-ISO Layout (ABS)

🇫🇷 French-ISO Layout (ABS)

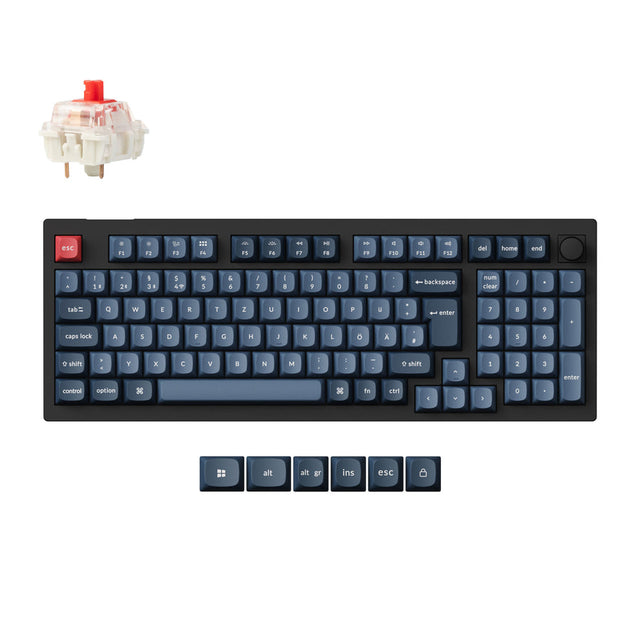

🇩🇪 German DE-ISO Layout (PBT)

🇨🇭 Swiss-ISO Layout(PBT)

🇬🇧 UK-ISO Layout(PBT)

🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout(PBT)

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V5 Max via Bluetooth 5.1 to three devices.

Dual Receivers

For a better 2.4 GHz wireless experience, the V5 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

Hot-Swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Screw-In PCB Stabilizers

Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V5 Max also supports third-party screw-in PCB stabilizers.

What's in the box?

Specs

Width 148.7 mm
Length 391.5 mm
Front Height 21.7 mm (without keycaps)
Back Height 29.6 mm (without keycaps)
Feet Height 2 mm Angle 3.5° / 8° / 10°
Weight 925 ± 10g (Fully Assembled Version)
Body Material ABS Plastic
Plate Material PC
Polling Rate 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Mount Style Gasket Mount Design
Bluetooth Device
Name Keychron V5 Max

Battery 4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off) Up to 225 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB) Up to 100 hours (Lowest brightness)
Charging Time Around 5 hours Bluetooth Version 5.1 Compatible System Windows/macOS/Linux
N-Key Rollover (NKRO) Yes for both wireless and wired modes
Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.

Keycaps (Fully Assembled Version) Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
 MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Switches Gateron Jupiter (Fully Assembled Version)
Backlight South-facing RGB LED
Stabilizer Screw-in PCB stabs
Charging Port USB Type-C
Cable Type-C cable + Type-A to Type-C adapter
Operating Environment -10℃ to 50℃
