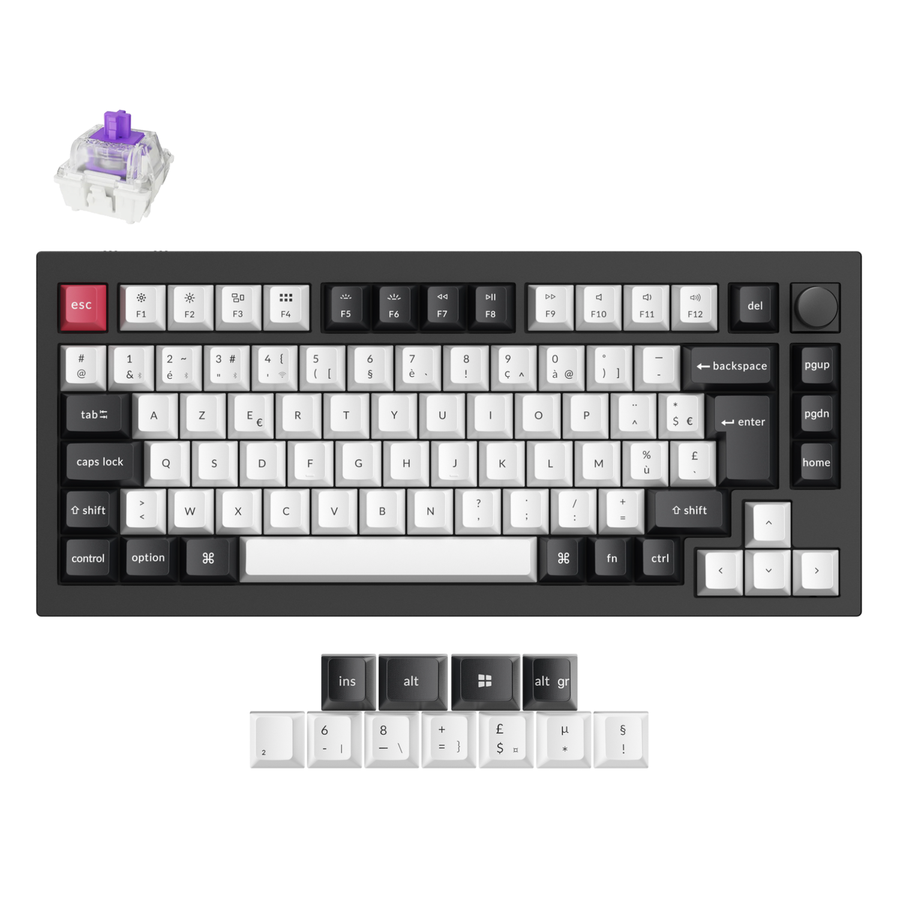

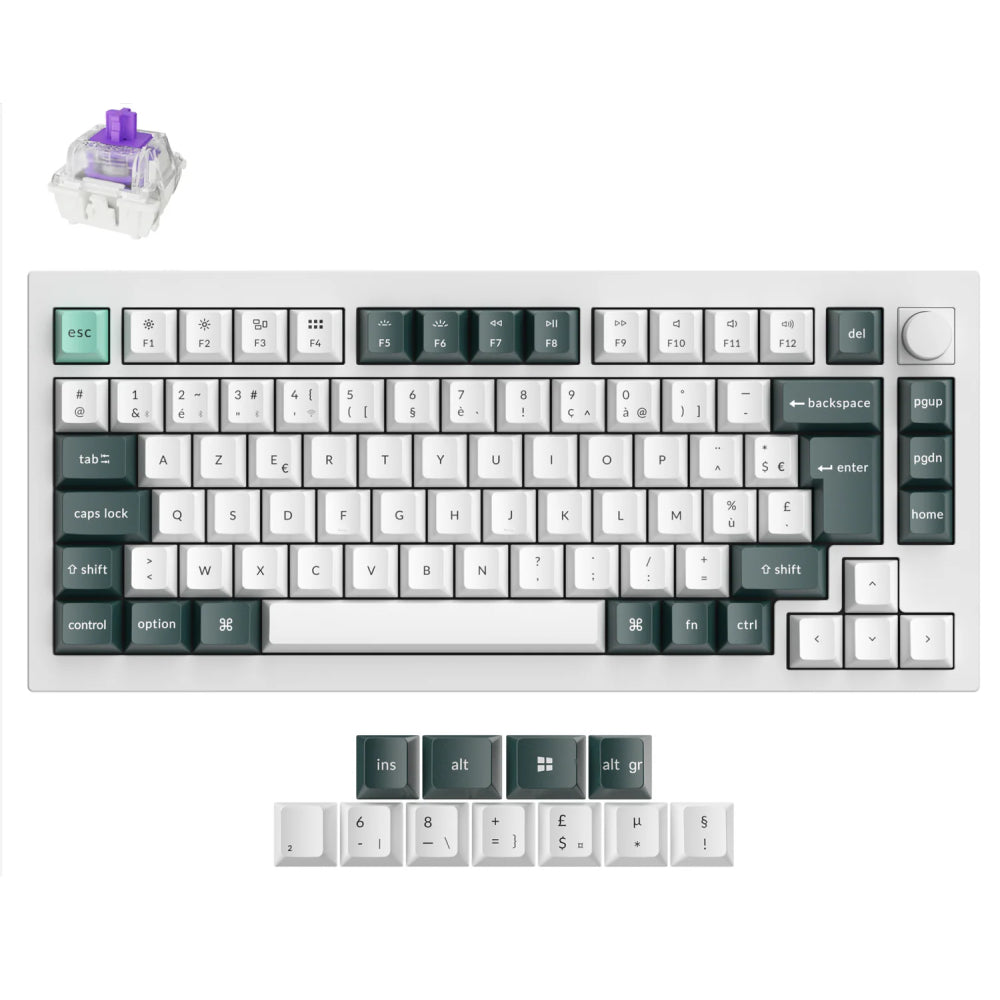

Keychron Q1 HE

ISO Layout Collection

Meet the Q1 HE, the world's first 75% layout wireless QMK custom keyboard equipped with Hall Effect Gateron double-rail magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences.

In addition to the Hall Effect magnetic switches, the Q1 HE introduces a 2.4G connection mode with an impressive 1000Hz polling rate, further ensuring a lightning-fast gaming experience. But that's not all; it also boasts premium features such as Bluetooth connectivity, a double-gasket design, an all-aluminum body, PBT keycaps, and more.

Q1 HE ISO Layout Versions

🇬🇧 UK-ISO Layout（PBT）

🇩🇪 German DE-ISO Layout（PBT）

🇨🇭Swiss-ISO Layout（PBT）

🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout（PBT）

Gateron Double-Rail Magnetic Hall Effect Switches

With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.

Installed with an optimal magnetic sensor with a sensitivity of only 0.1 mm, it offers more precious feedback. You can customize actuation points and assign multiple actions to a single key based on the travel depth you personalized, enhancing gameplay and providing a customized typing sensation.

Adjustable Actuation Point

Customize each key with ultra-precise 0.1 mm sensitivity and adjustable actuation points ranging from 0.2 to 3.8 mm. Setting the actuation point to 0.8 mm or 1.0 mm shortens the trigger and increases sensitivity. The reset occurs once you release the key, ensuring a faster response.

Dynamic Rapid Trigger

Activate or deactivate keys based on travel distance rather than fixed points. They activate precisely upon pressing and deactivate upon letting go, allowing for immediate repetition of keystrokes in mod-motion. This enables you to execute a chain of actions in quick succession during gameplay.

Multiple Actions, One Keystroke

Assign four actions to a single key based on the depth of your press. For example, lightly press a key to walk forward in a game, and press deeper to run. Additionally, releasing the key also supports two-stage settings. This allows for smoother, personalized combinations that can give you an edge in competitive gaming.

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the Q1 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q1 HE via Bluetooth 5.1 to three devices.

A Piece Of Metal Art

The entire metal body is crafted from 6063 aluminum, a material known for its increased durability, stability, and premium feel. Not only is this aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.

Hot-Swappable

Unlike mechanical switches, which depend on physical contact, Hall Effect magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible Hall Effect magnetic switches.

*The Q1 HE is compatible with the Gateron double-rail magnetic switches sold on the Keychron website only.

South-facing RGB LED Lights

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth.

What's in the box?

Specs

SPECIFICATION
Width 145 mm
Length 327.5 mm
Front Height 22.6 mm (without keycaps)
Back Height 35.8 mm (without keycaps)
Feet Height 2.4 mm
Angle 5.2°
Weight 1735 g ± 10 g (Fully Assembled version)
Body Material Aluminum
Plate Material Aluminum
Polling Rate 1000 Hz (Wired and 2.4 GHz) / 90Hz (Bluetooth)
N-Key Rollover (NKRO) Yes for both wireless and wired modes
Rapid Trigger Yes
Adjustable Actuation Points 0.2 - 3.8 mm
Dynamic Keystrokes 4-in-1 action keys
Sensitivity 0.1 mm
N-Key Rollover (NKRO) Yes for both wireless and wired modes

CONNECTIVITY AND POWER
Keycap OSA Double-shot keycaps, not shine-through
MCU ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
Backlight South-facing RGB LED
Switch Gateron double-rail magnetic switch
Hot-swappable Support Yes, compatible with Gateron double-rail magnetic switch only.
Stabilizer Screw-in PCB stabilizer
Cable Type-C cable + Type-A to Type-C adapter
Connectivity 2.4 GHz / Bluetooth / Type-C wired
Bluetooth Version 5.1
Bluetooth Device Name Keychron Q1 HE Battery 4000 mAh Rechargeable li-polymer battery
Operating Environment -10 to 50℃
Wireless Working Time (Backlit off) Up to 100 hours
