Keychron V4 Max QMK/VIA Wireless Custom Mechanical Keyboard

SKU: V4M-B1
€89,00

Type
Color
Switches

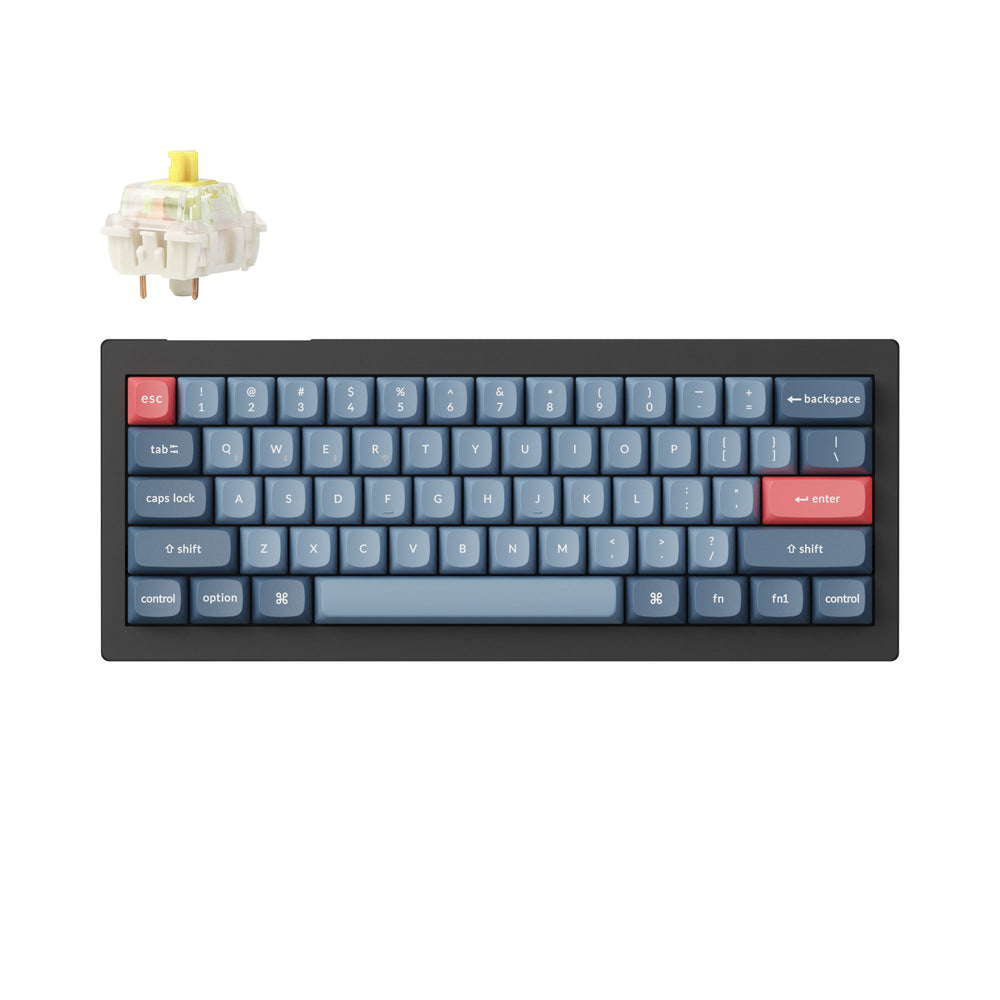

The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the PC plate
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
  • Gateron Jupiter switches

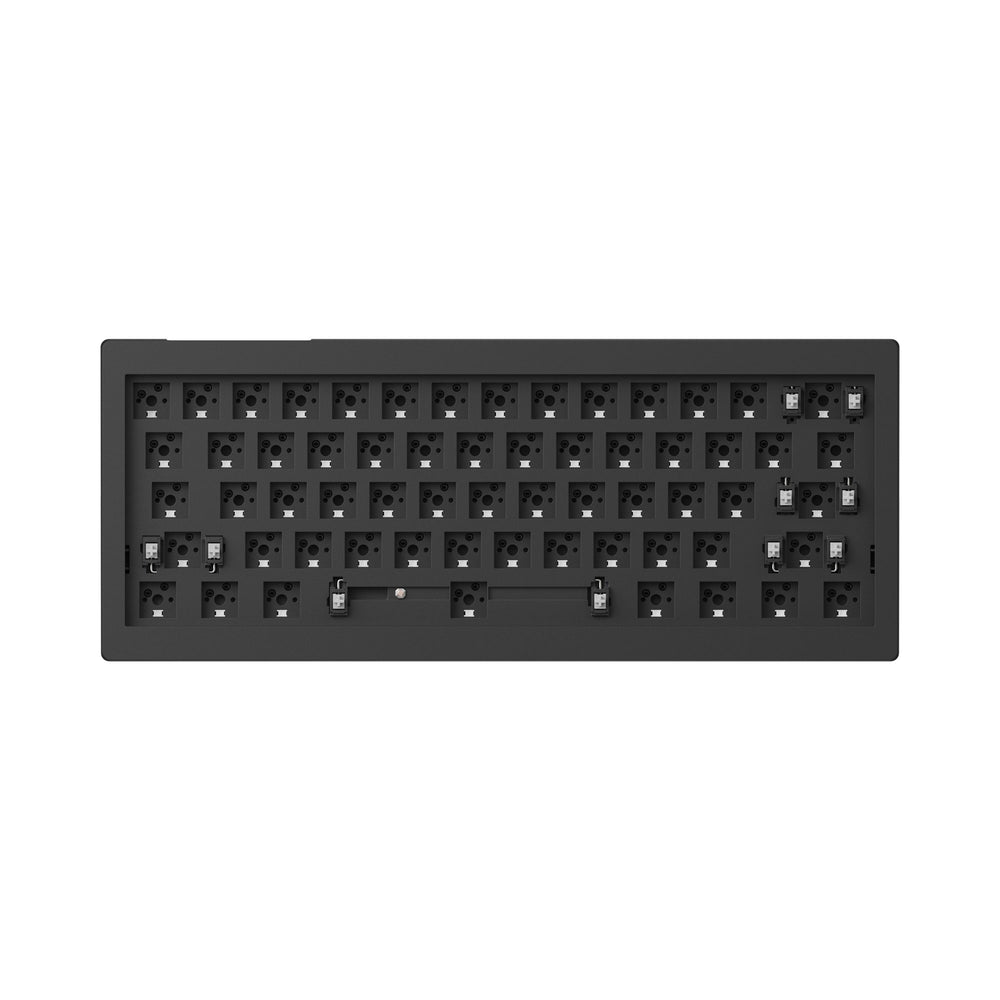

The barebone version does not include the keycaps and switches.
No discount codes can be used for V4 Max.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Keychron V4 Max 2.4G wireless QMK mechanical keyboard

Keychron V4 Max

The V4 Max is a QMK custom mechanical keyboard that supports 2.4 GHz wireless and Bluetooth 5.1 connectivity. It has a compact 60% layout enough for any space. Along with gasket mount structure, sound-absorbing foam, and double-shot PBT keycaps, it is designed for a personalized experience and enhanced typing comfort.

Keychron V4 Max 2.4G wireless QMK mechanical keyboard:f1b16bec-7c30-4c05-80d4-7974f8599be9
Keychron V4 Max 2.4G wireless QMK mechanical keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V4 Max via Bluetooth 5.1 to three devices.

2.4 GHz & Bluetooth Connection of Keychron V4 Max QMK/VIA Wireless Custom Mechanical Keyboard

Dual Receivers

For a better 2.4 GHz wireless experience, the V4 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

Keychron V4 Max 2.4G wireless QMK mechanical keyboard
Keychron V4 Max Custom wireless QMK mechanical keyboard

An Epic Core Inside The Keyboard

A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Keychron V4 Max Custom wireless QMK mechanical keyboard
Keychron V4 Max Custom wireless QMK mechanical keyboard

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V4 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Gasket Mount Design

By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V4 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.

Keychron V4 Max 2.4G wireless QMK mechanical keyboard
Program V2 Max with QMK & VIA of Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

Program V4 Max with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

qmk_via_screen_capture_of_keychron_v4_max__PID:5ce0c7c5-ff49-4f9b-bb62-3f81f1202b4c

Get the V1 keymap working on VIA

To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V1 keymap working on VIA.

 Since the VIA code for the V1 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the V1 keymap.

Note: Only the right JSON file can be input, please find the right version keymap JSON file which matches your keyboard to download.

V1 Knob Version Keymap JSON Files

Get the V4 Max keymap working on VIA

Since the VIA code for the V4 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the V4 Max keymap working on VIA.

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

Hot-swappable for Keychron V4 Max QMK/VIA Wireless Custom Mechanical Keyboard

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.

The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Keychron-Gateron-Jupiter-MX-mechanical-switch-red-brown-banana.webp__PID:ff497f9b-fb62-4f81-b120-2b4ce1aaa32b
Screw-In PCB Stabilizers of Keychron V2 Max QMK/VIA Wireless Custom Mechanical Keyboard

Screw-In PCB Stabilizers

Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V4 Max also supports third-party screw-in PCB stabilizers.

What's in the box?

Pack list of Keychron V4 Max Custom Mechanical Keyboard
Pack list of Keychron V4 Max Custom Mechanical Keyboard

Specs

Width123.3 mm
Length305 mm
Front Height28 mm (without keycaps)
Back Height33.7 mm (without keycaps)
Feet Height2 mm
Angle3.5° / 8° / 11°
Weight 645 ± 10 g (Fully Assembled Version)
Body MaterialABS Plastic
PlatePC
Keycaps (Fully Assembled Version) Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
SwitchesGateron Jupiter (Fully Assembled Version)
Hot-swappable  Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
Stabilizer Screw-in PCB stabs
Cable Type-C cable + Type-A to Type-C adapter
MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Charging Port USB Type-C
Operating Environment -10℃ to 50℃
Polling Rate 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Mount Style Gasket Mount Design
Backlight South-facing RGB LED
N-Key Rollover (NKRO)  Yes for both wireless and wired modes
Compatible System  Windows/macOS/Linux
Operating Environment-10℃ to 50℃
Bluetooth Version  5.1
Bluetooth Device Name Keychron V4 Max
Battery 4000 mAh Rechargeable li-polymer battery
Charging Time  Around 5 hours
Wireless Working Time (Backlit off)  Up to 225 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB)  Up to 100 hours (Lowest brightness)
