Keychron V1 Max QMK Wireless Custom Mechanical Keyboard ISO Layout Collection

SKU: V1M-D1-ES
€87,55 €103,00

Type
Layout Version
Switches

The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the PC plate
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
  • Gateron Jupiter switches




No discount codes can be used for V1 Max.

ISO options: German, UK, Nordic, Spanish, French, Italian,  Swiss and Portugal layouts.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

Keychron V1 Max

ISO Layout Collection

The V1 Max is a fully customizable mechanical keyboard, offering both 2.4 GHz wireless and Bluetooth 5.1 connectivity. Its compact 75% layout, gasket mount design, sound absorbing foam, double-shot PBT keycaps, and more take your typing experience to a new level, delivering heightened levels of comfort and productivity.

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout
Features of Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout
Customize Your V1 Max ISO

Choose the keycaps, switches, and more accessories for your V1 Max ISO

OSA Profile Keycaps

To further leverage your typing experience, the V1 Max ISO version comes with our unique OSA profile(OEM profile with spherical angle) keycaps.

Structure of Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

Shine-Through ABS Keycaps

K10-Pro-ISO-ABS-NEW_d5799fd2-a73d-406e-acc0-eb1d0c24fcdc.webp__PID:36ffe614-6532-4de5-acc9-5d008b1e001c

ABS keycaps aim to provide a comfortable fingertip feel and a fantastic backlight shine-through effect.

OSA Profile Keycaps

K-Pro-ISO-PBT-1_7522fa72-069f-4587-864e-c1c1cf9a2ef5.webp__PID:e6146532-4de5-4cc9-9d00-8b1e001c0d3b

The double-shot PBT keycaps will provide excellent oil resistance, and prevent the legends from fading out.

V1 Max ISO Layout Versions

These versions include the UK, German, Swiss, French, Spanish, Italian, and Nordic layouts, all with extra keycaps suitable for Mac and Windows devices.

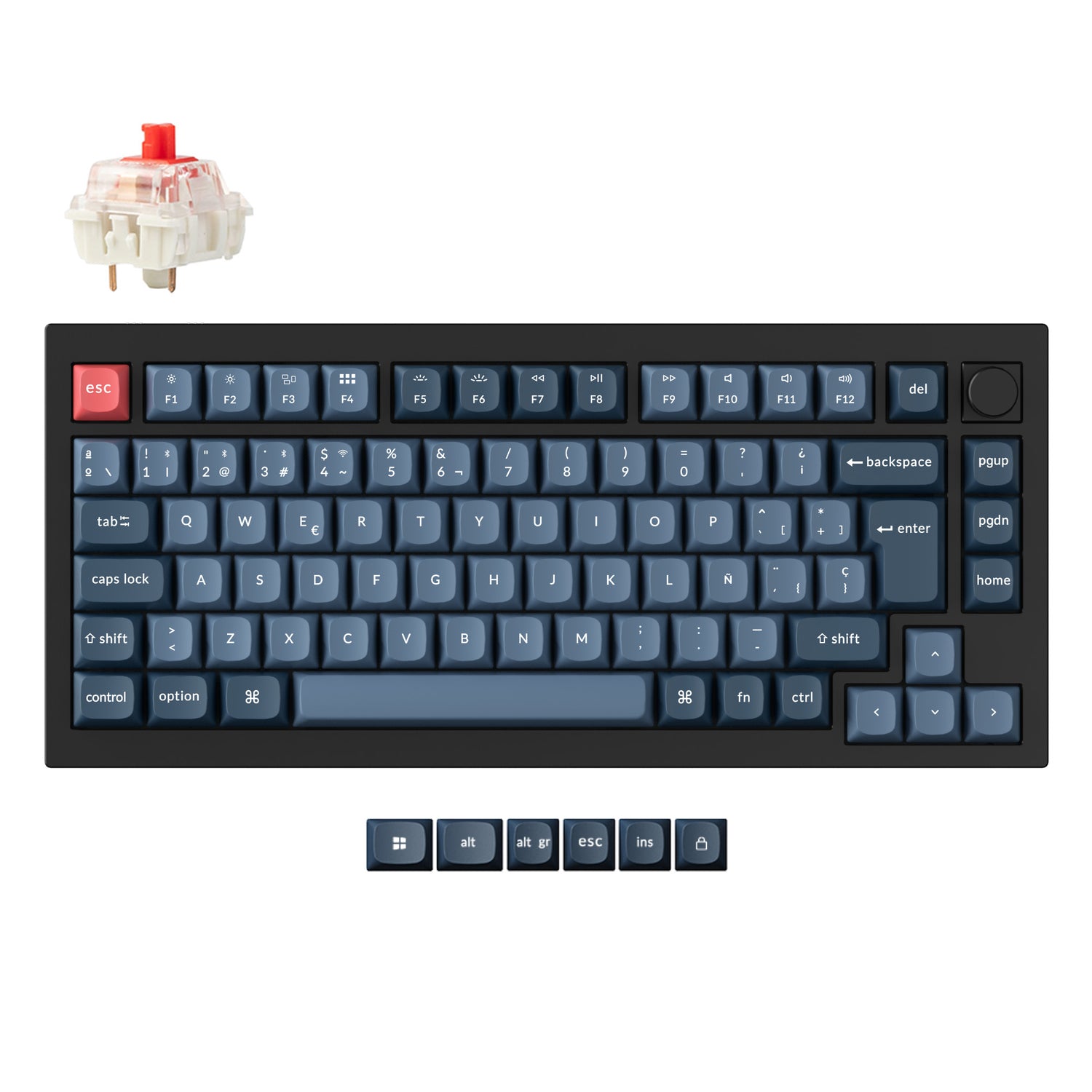

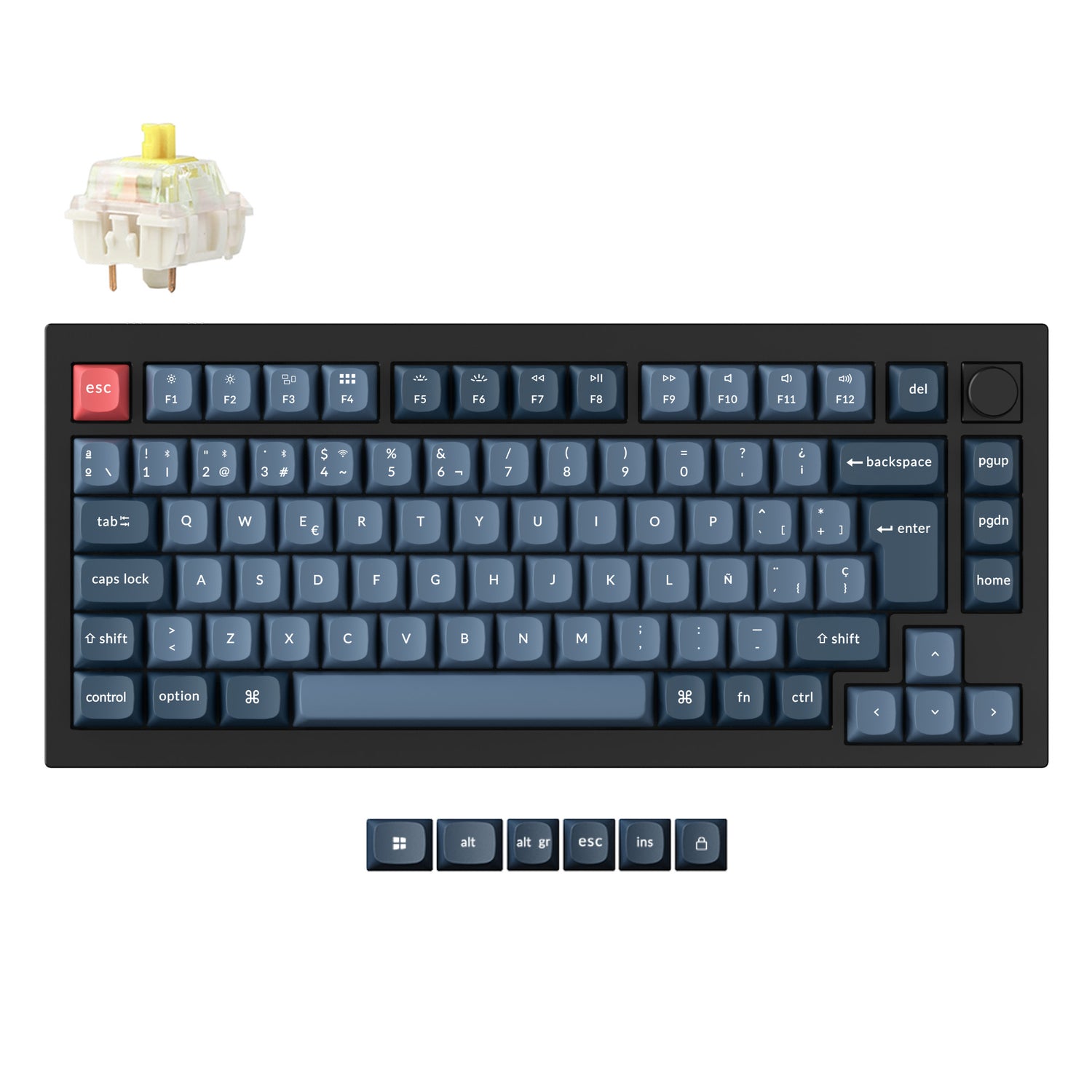

🇪🇸 Spanish-ISO Layout (ABS)

Spanish-ISO of Keychron V1 Max QMK/VIA Wireless Custom Keyboard 75% ISO Layout

🇫🇷 French-ISO Layout (ABS)

French-ISO Layout of Keychron V1 Max QMK/VIA Wireless Custom Keyboaard 75% ISO Layout

🇬🇧 UK-ISO Layout (PBT)

UK-ISO Layout of Keychron V1 Max QMK/VIA Wireless Custom Keyboard ?75% ISO Layout

🇩🇪 DE-ISO Layout (PBT)

German DE-ISO Layout of Keychron V1 Max QMK/VIA Wireless Custom Keyboard 75% ISO Layout

🇨🇭 Swiss-ISO Layout (PBT)

Swiss-ISO Layout of Keychron V1 Max QMK/VIA Wireless Custom Keyboard 75% ISO Layout

🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout (PBT)

Nordic-ISO of Keychron V1 Max QMK/VIA Wireless Custom Keyboard 75%ISO Layout

Italian-ISO Layout (ABS)

Italian-ISO Layout of Keychron V1 Max QMK/VIA Wireless Custom Keyboard 75% ISO Layout

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Structure of Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout
Structure of Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V1 Max via Bluetooth 5.1 to three devices.

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

Dual Receivers

For a better 2.4 GHz wireless experience, the V1 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

Type C and Type A Receivers
Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

An Epic Core Inside The Keyboard

A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout
Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V1 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Gasket Mount Design

By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V1 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Launcher screen capture of Keychron V1 Max ISO Click here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Hot-Swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

Hot swappable feature

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Gateron Jupiter Switch Features of Keychron V1 Max QMK/VIA Wireless Cuustom Mechanical Keyboard 75% Layout ISO Layout
All New Screw In PCB Stabilizers of Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

Screw-In PCB Stabilizers

Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V1 Max also supports third-party screw-in PCB stabilizers.

What's in the box?

Package list of Keychron V1 Max QMK/VIA Wireless Custom Mechanical Keyboard 75% Layout ISO Layout

SPECIFICATION
Width 148.7 mm
Length 328.5 mm
Front Height 21.5 mm (without keycaps)
Back Height 29.4 mm (without keycaps)
Feet Height 2 mm
Angle 3.5° / 7.1° / 9.5°
Weight 770 g ± 10 g (Fully Assembled Version)
Body Material ABS Plastic
Plate Material PC
Polling Rate 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Mount Style Gasket Mount Design
Bluetooth Device Name Keychron V1 Max
N-Key Rollover (NKRO) Yes for both wireless and wired modes

CONNECTIVITY AND POWER
Battery 4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off) Up to 225 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB) Up to 100 hours (Lowest brightness)
Charging Time Around 5 hours
Bluetooth Version 5.1
Compatible System Windows/macOS/Linux
Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.

PHYSICAL UNIT
Keycaps (Fully Assembled Version) Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Switches Gateron Jupiter (Fully Assembled Version)
Backlight South-facing RGB LED
Stabilizer Screw-in PCB stabs
Charging Port USB Type-C
Cable Type-C cable + Type-A to Type-C adapter
Operating Environment -10℃ to 50℃

Keychron V1 Max User Guide

Learn more about the Keychron V1 Max such as the V1 Max shortcuts, assembling the V1 Max, factory reset, and more in the FAQ section.
