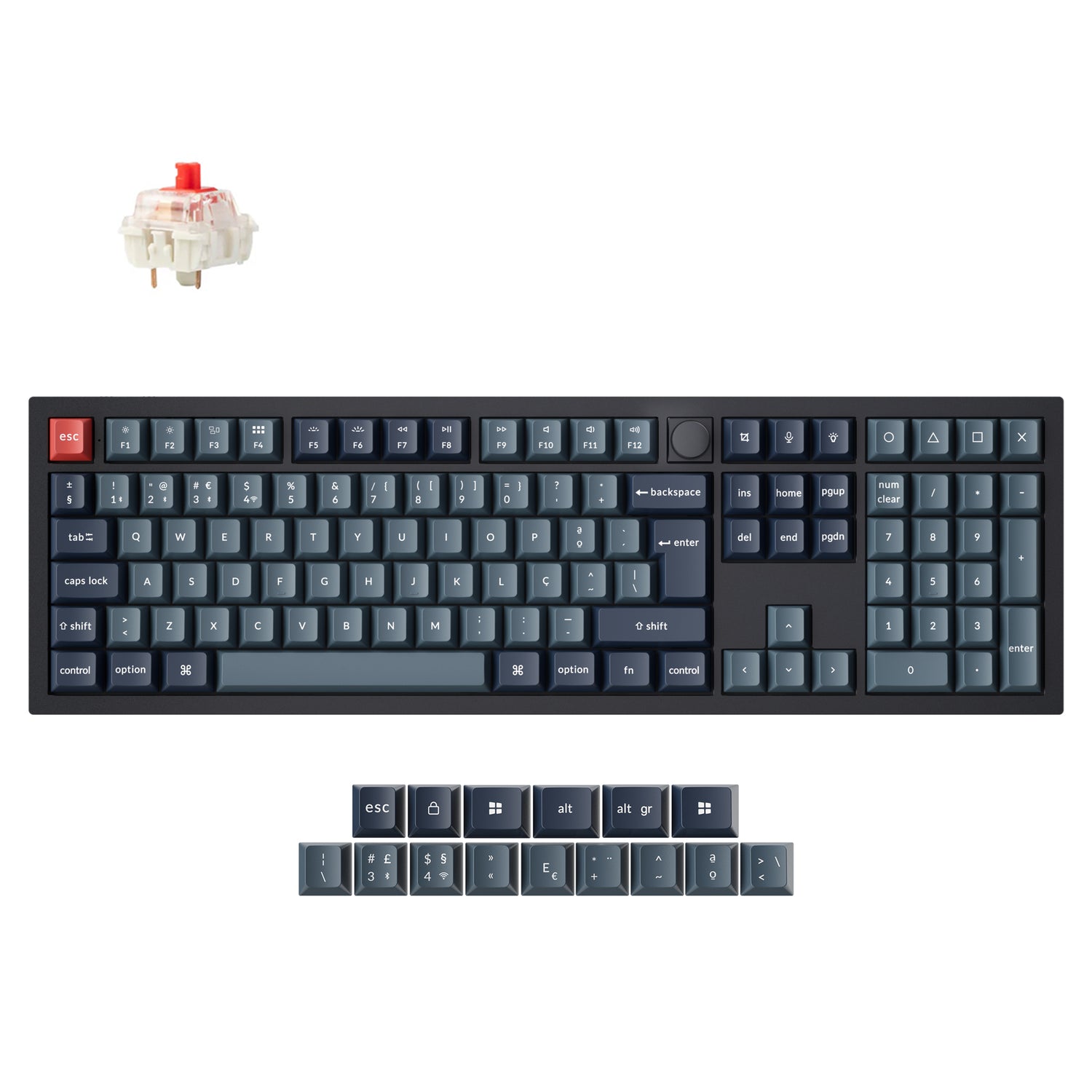

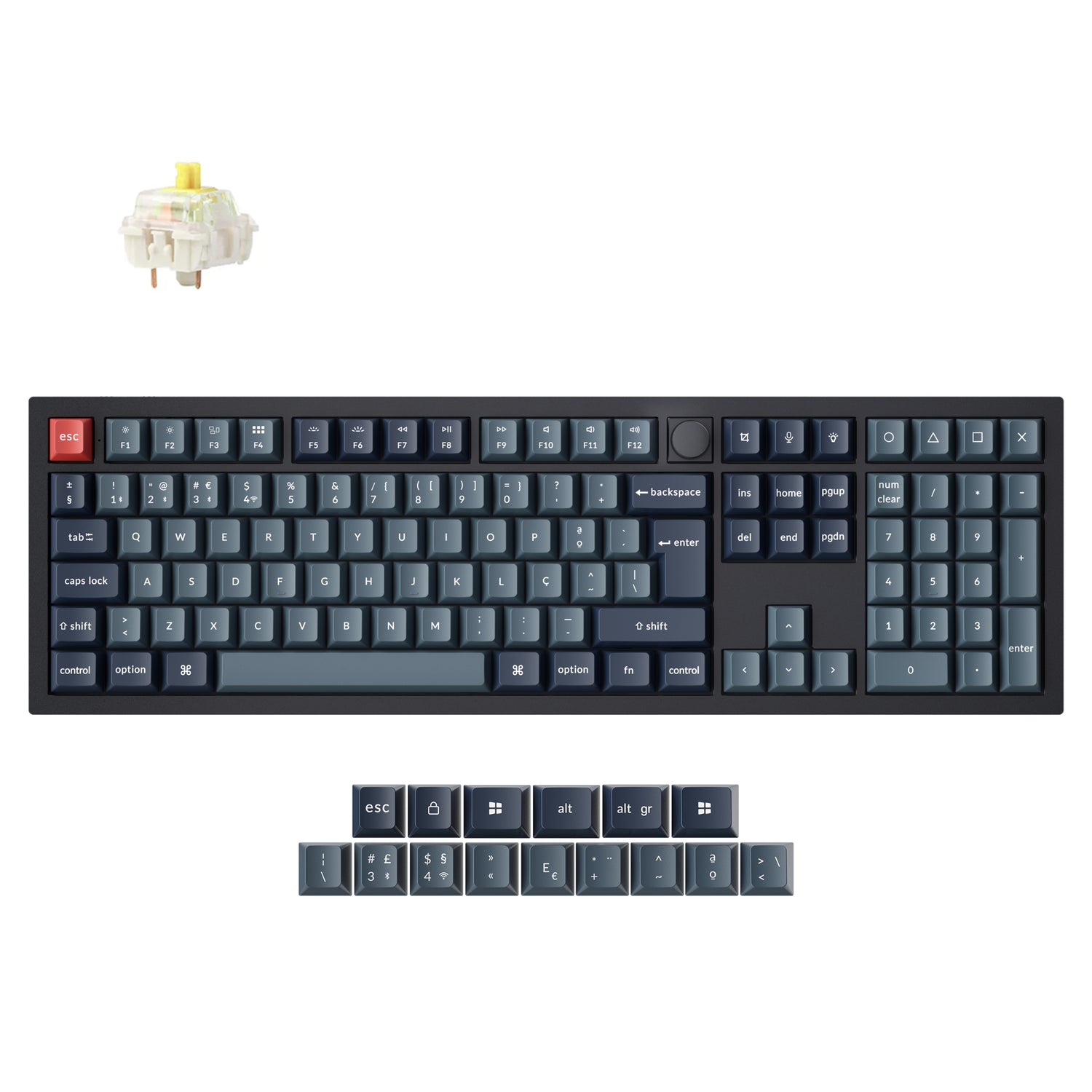

Keychron V6 Max QMK Wireless Custom Mechanical Keyboard ISO Layout Collection

Keychron V6 Max

ISO Layout Collection

The V6 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a full-size 100% layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V6 Max is designed for a personalized experience and enhanced typing comfort.

Choose the keycaps, switches and more accessories for your V6 Max ISO

OSA Profile Keycaps

To further leverage your typing experience, the V6 Max ISO version comes with our unique OSA profile(OEM profile with spherical angle) keycaps.

V6 Max ISO Layout Versions

These versions include the UK, German, Swiss, Spanish, French, Italian, and Nordic layouts, all with extra keycaps suitable for Mac and Windows devices.

🇩🇪 DE-ISO Layout (PBT)

🇨🇭 Swiss-ISO Layout (PBT)

🇬🇧 UK-ISO Layout (PBT)

🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout (PBT)

🇪🇸 Spanish-ISO Layout (ABS)

🇫🇷 French-ISO Layout (ABS)

Italian-ISO Layout (ABS)

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V6 Max via Bluetooth 5.1 to three devices.

Dual Receivers

For a better 2.4 GHz wireless experience, the V6 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

Hot-Swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Screw-In PCB Stabilizers

Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V6 Max also supports third-party screw-in PCB stabilizers.

What's in the box?

Specs

Width 149.0 mm
Length 447.9 mm
Front Height: 22.6 mm (without keycaps)
Back Height: 330.3 mm (without keycaps)
Feet Height: 2 mm
Angle: 3.5° / 7.0° / 9.5°
Weight: 1110 ± 10 g (Fully Assembled Version)
Body Material: ABS Plastic Plate
Material: PC
Keycaps (Fully Assembled Version): OSA backlight shine-through ABS keycaps / OSA double-shot PBT keycaps
Switches: Gateron Jupiter (Fully Assembled Version)
Hot-swappable: Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
Stabilizer: Screw-in PCB stabs Cable：Type-C cable + Type-A to Type-C adapter

MCU： ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Charging Port： USB Type-C
Operating Environment： -10℃ to 50℃
Polling Rate： 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Mount Style： Gasket Mount Design
Backlight： South-facing RGB LED
N-Key Rollover (NKRO)： Yes for both wireless and wired modes
Compatible System：Windows/macOS/Linux
Bluetooth Version： 5.1
Bluetooth Device Name： Keychron V6 Max
Battery 4000 mAh Rechargeable li-polymer battery
Charging Time： Around 5 hours
Wireless Working Time (Backlit off)： Up to 225 hours (Lab test result may vary by actual use)
 Wireless Working Time (RGB)： Up to 100 hours (Lowest brightness)
