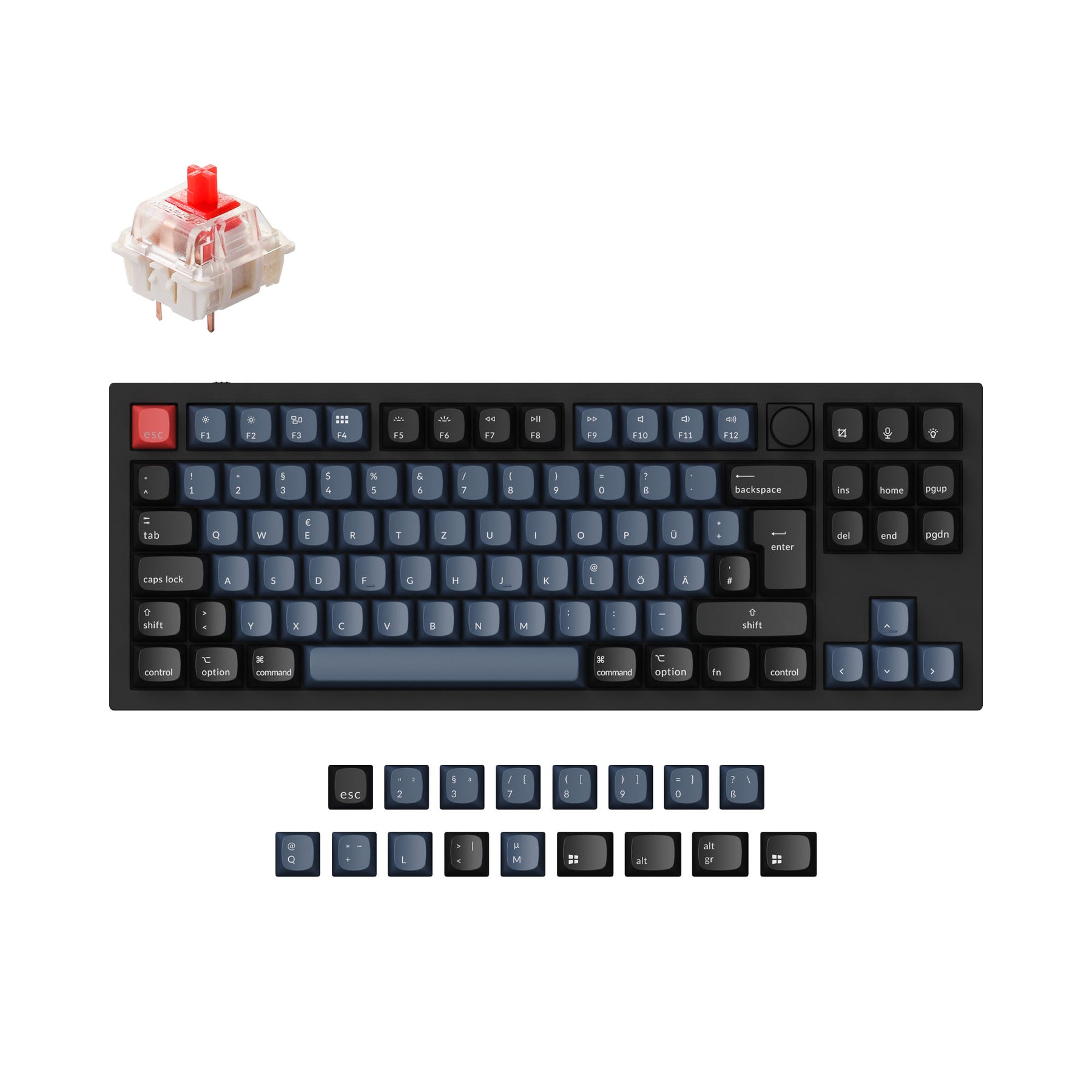

Keychron Q3 QMK Custom Mechanical Keyboard ISO Layout Collection

SKU: Q3-M1-ES
€190,00

Type
Layout Version
Switches

The fully assembled knob version includes:
  • The keyboard PCB, the case, and the steel plate.
  • OSA profile ABS backlight shine-through keycaps (including Mac & Windows keycaps)
  • Gateron G Pro switches.

Keychron Q3 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layout.

No discount codes can be used for Q3 ISO layout version.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Keychron Q3
ISO Layout Versions

The Q3 is a fully customizable mechanical keyboard to push your typing experience to the top. With the classic tenkeyless layout, full aluminum CNC machined body, double-gasket design, and QMK/VIA support, the Q3 is designed for premium typing comfort and endless possibility.

Keychron Q3 80% TKL Custom Mechanical Keyboard
Keychron Q3 80% TKL Custom Mechanical Keyboard
Customize Your Q3

Choose the keycaps, switches, and more accessories for your Q3 ISO layout keyboard.

Q3 ISO Layout Version

The Keychron Q3 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layouts. Each Q3 ISO layout keyboard is also equipped with extra keycaps that fully satisfy your needs.

🇬🇧 UK-ISO Layout

Keychron Q3 80% TKL Custom Mechanical Keyboard

🇩🇪 DE-ISO Layout

Keychron Q3 80% TKL Custom Mechanical Keyboard

🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪 Nordic-ISO Layout

Keychron Q3 80% TKL Custom Mechanical Keyboard

🇫🇷 FR-ISO Layout

Keychron Q3 80% TKL Custom Mechanical Keyboard

🇪🇸 ES-ISO Layout

Keychron Q3 80% TKL Custom Mechanical Keyboard

🇨🇭 Swiss-ISO Layout

Keychron Q3 80% TKL Custom Mechanical Keyboard
Keychron Q3 80% TKL Custom Mechanical Keyboard

With keycaps for macOS installed on Q3 DE-ISO layout.

Keychron Q3 80% TKL Custom Mechanical Keyboard

With keycaps for Windows installed on Q3 DE-ISO layout.

Refined Metal Art

The entire piece metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make a solid metal art on the desk that is the Q3.

Keychron Q3 80% TKL Custom Mechanical Keyboard
Keychron Q3 80% TKL Custom Mechanical Keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.

Keychron Q3 80% TKL Custom Mechanical Keyboard

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

Keychron Q3 80% TKL Custom Mechanical Keyboard

Programmable Knob

Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Keychron Q3 80% TKL Custom Mechanical Keyboard

You can easily customize the Q3's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Setting the macros for "zoom in/out"

Using the knob as "zoom in/out"

Keychron Q3 80% TKL Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q3 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Keychron Q3 80% TKL Custom Mechanical Keyboard
Program Q1 Max with QMK
launcher__PID:d730f5d3-a618-40f3-b580-f4130947594c

Program with QMK & Launcher.

Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the Keychron Launcher Web App.

Click here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

Keychron Q3 80% TKL Custom Mechanical Keyboard

Pre-lubed Gateron G Pro Switch

By optimizing the switch mold, the G Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the G Pro switches (excluding the clicky ones) will no doubt ensure the best smoothness at your fingertips when typing.

Keychron Q3 80% TKL Custom Mechanical Keyboard
Keychron Q3 80% Custom Mechanical Keyboard stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q3 also supports third-party screw-in PCB stabilizers.

Sound Test

Keychron Q3 80% TKL Custom Mechanical Keyboard

What's in the box?

Keychron Q3 80% TKL Custom Mechanical Keyboard

Specs

Width137 mm
Length365.1 mm
Front Height19.7 mm  (without keycaps)
Back Height32.6 mm (without keycaps)
Feet Height2.4 mm
Angle5.2°
Weight2000 g ± 10g (the fully assembled weight)
Body MaterialFull CNC machined aluminum
PlateSteel
Polling Rate1000Hz
LayoutDE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO
KeycapsOSA Profile ABS backlight shine-through keycaps
SwitchesGateron G Pro (fully assembled version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment-10℃ to 50℃
Keychron Q3 User Guide

Learn more about the Keychron Q3 such as the Q3 shortcuts, assembling the Q3, factory reset, and more in the FAQ section.

Customer Reviews

Based on 10 reviews
90%
(9)
0%
(0)
10%
(1)
0%
(0)
0%
(0)
A
Anonymous

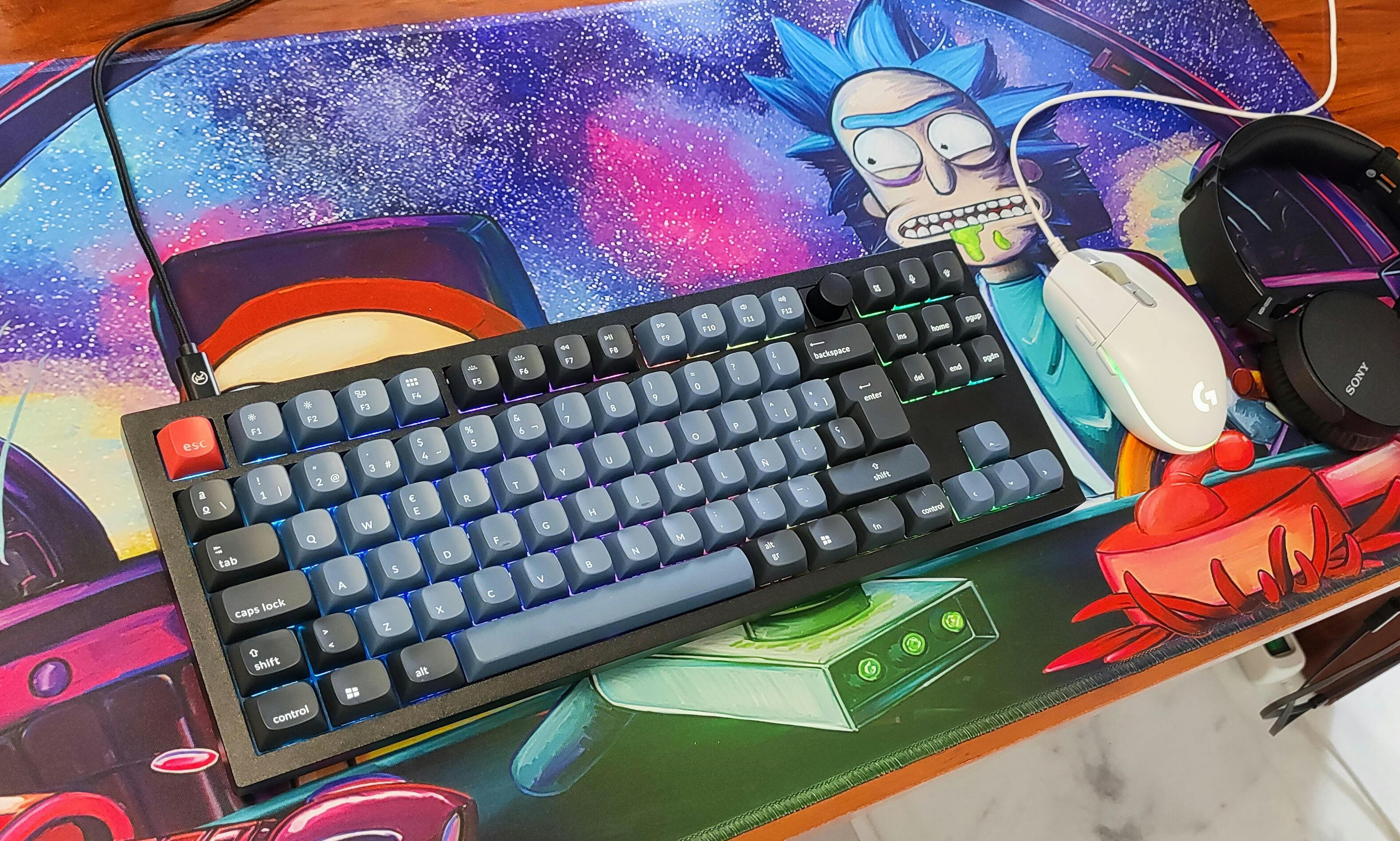

Awesome!
