Keychron Q2 QMK Custom Mechanical Keyboard ISO Layout Collection


Layout Verion

The fully assembled knob version includes:
  • The keyboard PCB, the case, and the steel plate.
  • OSA Profile ABS backlight shine-through keycaps (included Mac & Windows keycaps).
  • Gateron G Pro switches.

Keychron Q2 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layout.

No discount codes can be used for Q2 ISO layout version.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Keychron Q2
ISO Layout Version

Keychron Q2 65% Custom Mechanical Keyboard
Customize Your Q2

Choose the keycaps, switches and more accessories for your Q2

Q2 ISO Layout Version

The Keychron Q2 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layouts. Each Q2 ISO layout keyboard is also equipped with extra keycaps that fully satisfy your needs.

🇩🇪 DE-ISO Layout

🇬🇧 UK-ISO Layout

🇫🇷 FR-ISO Layout

🇪🇸 ES-ISO Layout

🇨🇭 Swiss-ISO Layout

🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪 Nordic-ISO Layout

With keycaps for macOS installed on Q2 DE-ISO layout.

With keycaps for Windows installed on Q2 DE-ISO layout.

Expertly Crafted And Compact

To create a more compact and smaller keyboard for your desk, we bring you the Q2. The entire piece is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make the work of art that is the Q2.

Aluminum Frame of Keychron Q2 65% Custom Mechanical Keyboard
Keychron Q2 65% Custom Mechanical Keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component you want.

Keychron Q2 QMK VIA custom mechanical keyboard with knob 65% layout and double gasket design and hot-swappable Gateron G Pro switch US ISO UK layout or  barebone

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This Double-Gasket Structure allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

Double-Gasket Design of Keychron Q2 65% Custom Mechanical Keyboard

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to customize your favorite keys and macros through the innovative VIA software with ease.

Rotary encoder function of Keychron Q2 QMK VIA 65% layout custom mechanical keyboard with retary encoder knob version

You can easily customize the Q2's knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, opacity, volume, selecting video clips or photos, or backlight hue.

Editing keymap on VIA

Zoom in and out via the knob controller

OSA Profile ABS Backlight Shine-Through Keycaps

To further leverage your typing experience, the Q2 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS backlight shine-through keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.

Keycaps Keychron Q2 65% Custom Mechanical Keyboard

Switch layouts between macOS & Windows

Built with the Mac users' experience in mind while still retaining compatibility for Windows devices, the Keychron Q2 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Program Q2 with QMK & VIA

With full QMK and VIA support, you can program and remap each key on the keyboard with ease. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

 A brand new ultra-low-power Arm Cortex-M4 32-bit STM32L432 MCU which is powerful, and armed with 128K Flash will provide more flexibility for developers.

QMK VIA screen capture of Keychron Q2 Knob version


The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs OEM or Cherry-profile alternative keycaps on their keyboard.

Note: The Q2's top case has sharper corners to make it much more compatible with third-party keycaps.

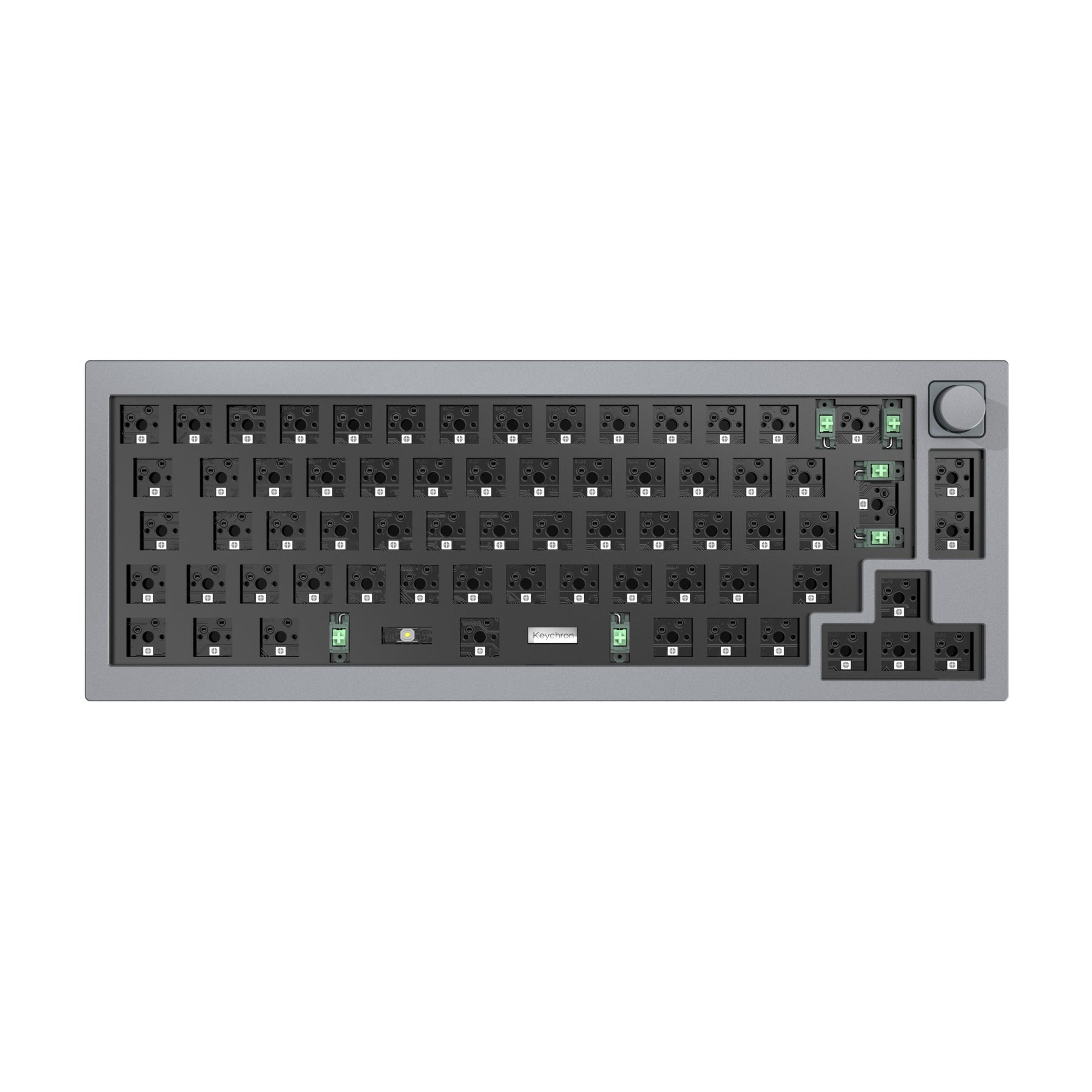

Barebone US layout of Keychron Q2 QMK VIA 65% layout custom mechanical keyboard with rotary encoder knob version

Pre-lubed Gateron G Pro Switch

Every detail counts when it comes to a premium typing experience. An optimized mold with more precise positioning and less wobbliness will certainly improve your fingertip feel. Pair that together with factory pre-lubed Gateron G Pro switches, a smooth travel experience is guaranteed.

Gateron G Pro Switch Feature of Keychron Q2 65% Custom Mechanical Keyboard
Keychron Q2 65% Custom Mechanical Keyboard

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q2 also supports third-party stabilizers including Cherry or Durock.

customize your keychron q2

Typing Sound Test

What's in the box?

Keycaps Keychron Q2 65% Custom Mechanical Keyboard
Keycaps Keychron Q2 65% Custom Mechanical Keyboard


Width121 mm
Length327.5 mm
Front Heigh20 mm (without keycaps)
Back Height33.8 mm (without keycaps)
Feet Height2.7 mm
Weight1645 g ± 10g (Fully Assembled Version)
Body MaterialFull CNC machined aluminum
Plate MaterialSteel
Polling Rate1000Hz
LayoutDE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO
Keycaps (fully assembled version)OSA Profile ABS backlight shine-through keycaps
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
SwitchesGateron G Pro (Fully Assembled Version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter

Learn more about the Keychron Q2 such as the Q2 shortcuts, assembling the Q2, factory reset, and more in the FAQ section.
