Keychron V3 QMK Custom Mechanical Keyboard ISO Layout Collection
Keychron V3 QMK Custom Mechanical Keyboard ISO Layout Collection - Fully Assembled Knob (Frosted Black) / ES-ISO / Keychron K Pro Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- ABS plastic housing
- The keyboard PCB, screw-in stabs, and the steel plate
- OSA profile ABS shine-through keycaps (including Mac & Windows keycaps)
- Keychron K Pro switches
No discount codes can be used for V3. Please drop your email on "Notify Me When Available" if the product model is out of stock.

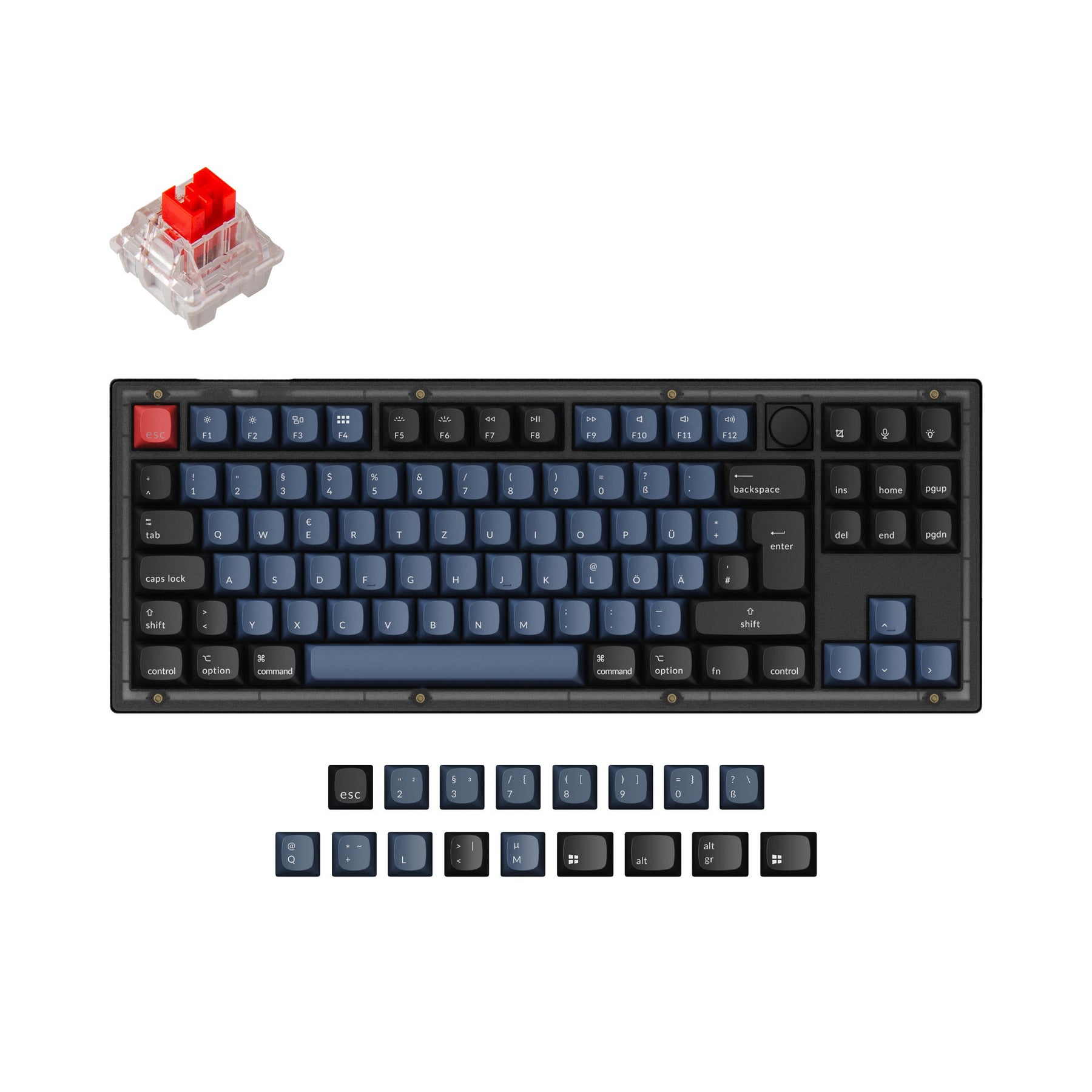

Keychron V3
ISO Layout Collection
The V3 is a classic TKL (80%) layout custom keyboard with many premium features like QMK/VIA support, backlight shine-through keycaps, screw-in stabs, etc., which provides endless possibilities and a comfortable typing experience!
Choose the keycaps, switches and more accessories for your V3 ISO
Keychron V3 ISO Layout Versions
These versions include the Nordic, Swiss, German, UK, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.
🇨🇭Swiss-ISO Layout
🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout
🇩🇪 German DE-ISO Layout
🇬🇧 UK-ISO Layout
🇫🇷 French-ISO Layout
🇪🇸 Spanish-ISO Layout
With keycaps for macOS installed on V3 DE-ISO layout.
With keycaps for Windows installed on V3 DE-ISO layout.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.
Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V3 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
OSA Profile ABS Backlight Shine-Through Keycaps
To further leverage your typing experience, the V3 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.
Program V3 with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.
Programmable Knob
Designed to enhance your creative workflow, its aluminum rotary encoder allows you to customize your favorite keys and macros on the knob through the VIA software with ease.
You can easily customize the V3's knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Pre-lubed Keychron K Pro Switch
By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron V3 also supports third-party screw-in PCB stabilizers.
What's in the box?
Specs
Width | 140.56 mm |
---|---|
Length | 366.70 mm |
Front Height | 19.44 mm (without keycaps) |
Back Height | 26.83 mm (without keycaps) |
Feet Height | 2.4 mm |
Angle | 3.5° / 7.26° / 9.69° |
Weight | 1120 g ± 10 g (Fully Assembled Version) |
Body Material | ABS Plastic |
Plate | Steel |
Polling Rate | 1000 Hz |
Mount Style | Tray Mount Design |
Keycaps (Fully Assembled Version) | OSA Profile ABS backlight shine-through keycaps |
---|---|
MCU | Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash) |
Backlight | South-facing RGB LED |
Switch | Keychron K Pro |
Switch Support | Hot-swappable (5 pin & 3 pin) |
Connectivity | Type-C cable |
Cable | Type-C cable + Type-A to Type-C adapter |
Operating Environment | -10℃ to 50℃ |
Learn more about the Keychron V3 such as the V3 shortcuts, assembling the V3, factory reset, and more in the FAQ section.
