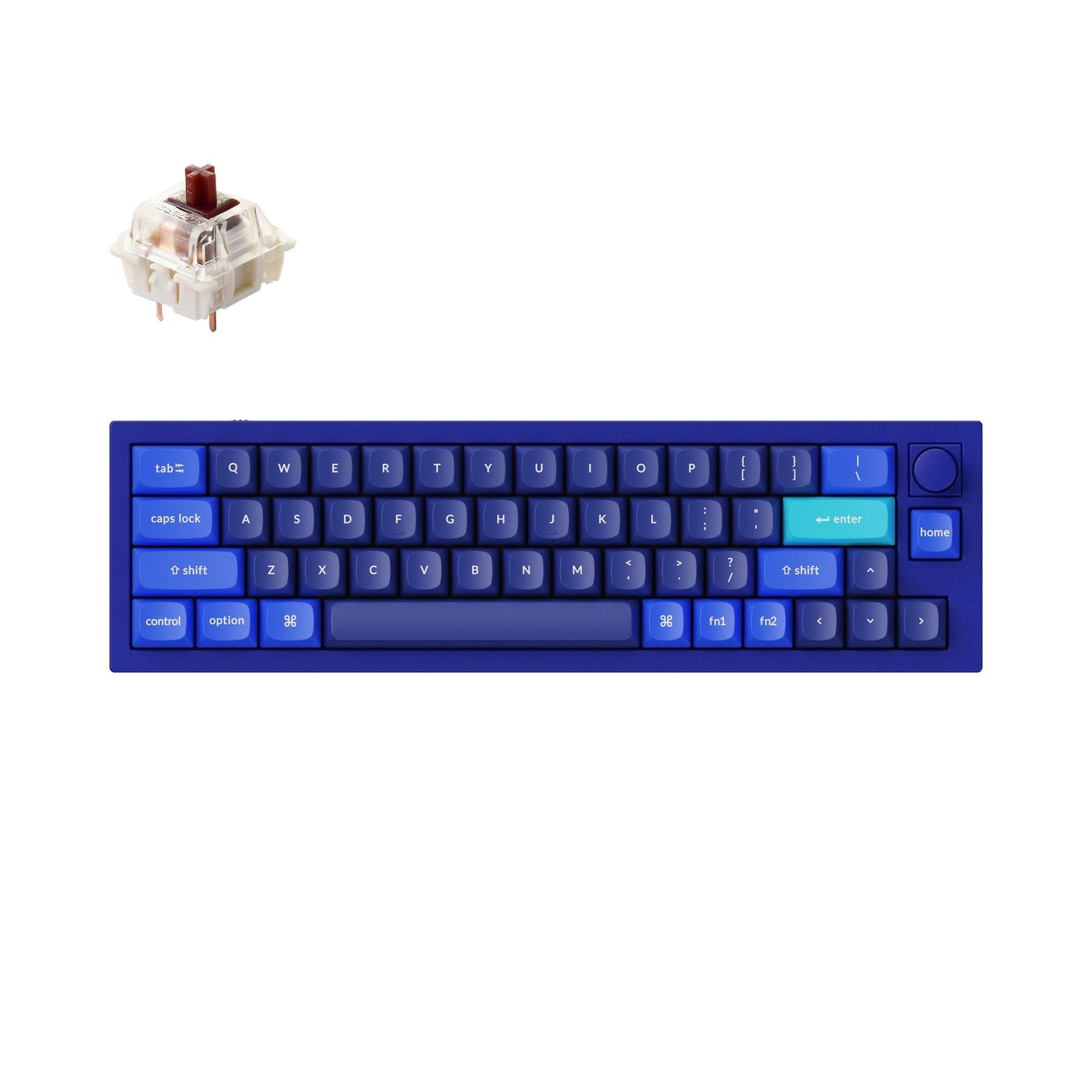

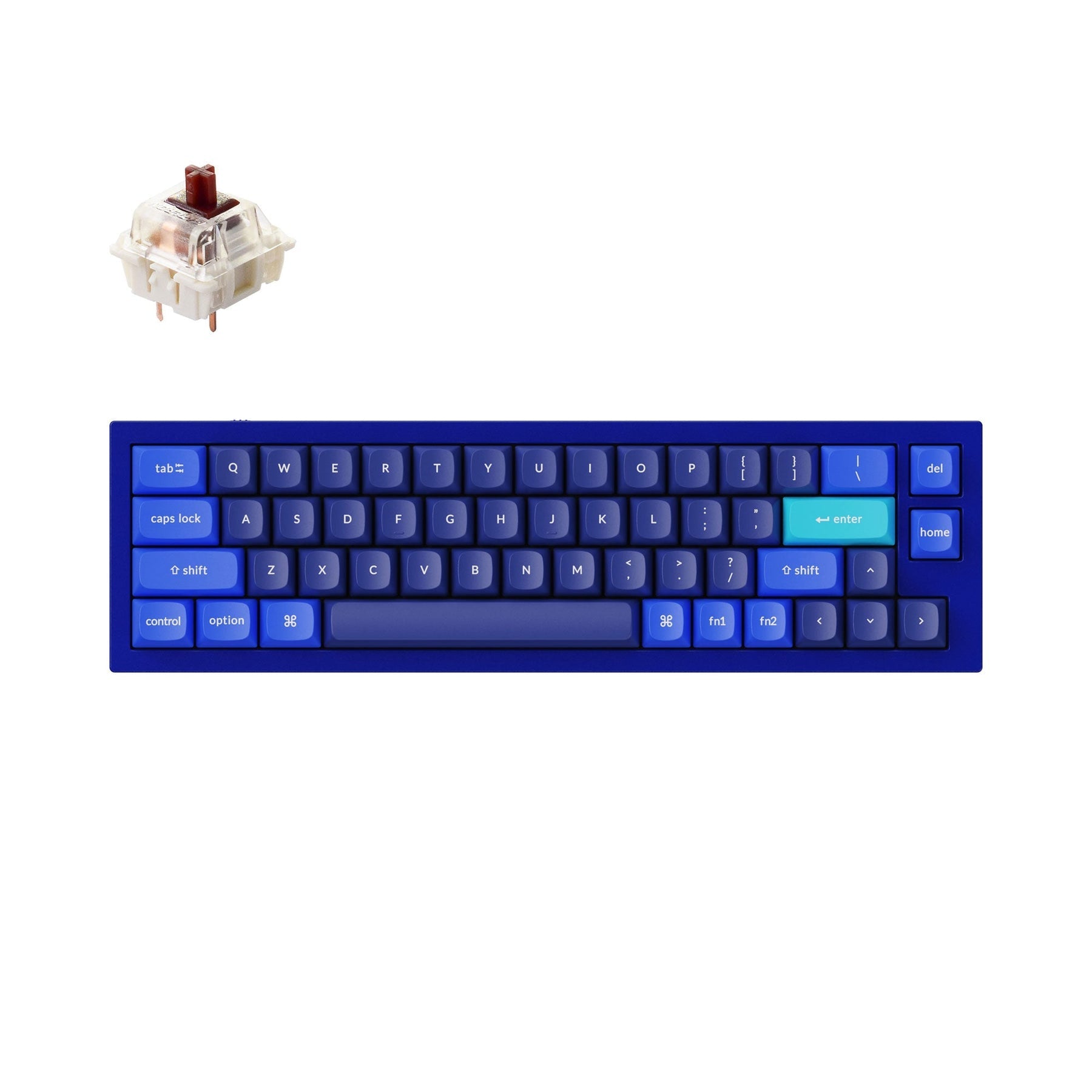

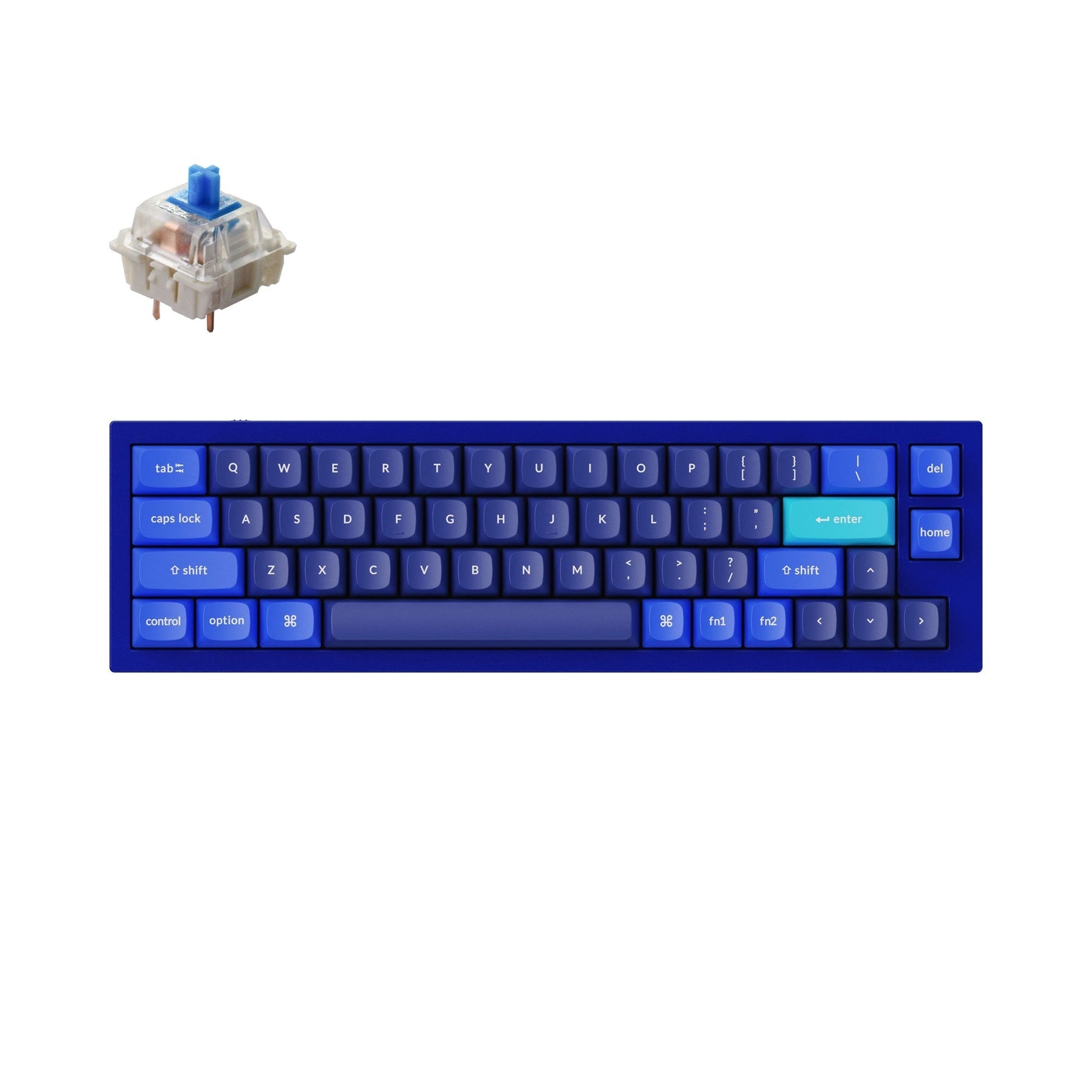

Keychron Q9 QMK Custom Mechanical Keyboard (US ANSI Keyboard)

SKU: Q9L-M1
€124,80 €156,00

Type
Color
Switches

The fully assembled version includes:

  • The keyboard PCB, the case, and the steel plate.
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps).
  • Gateron G Pro switches.

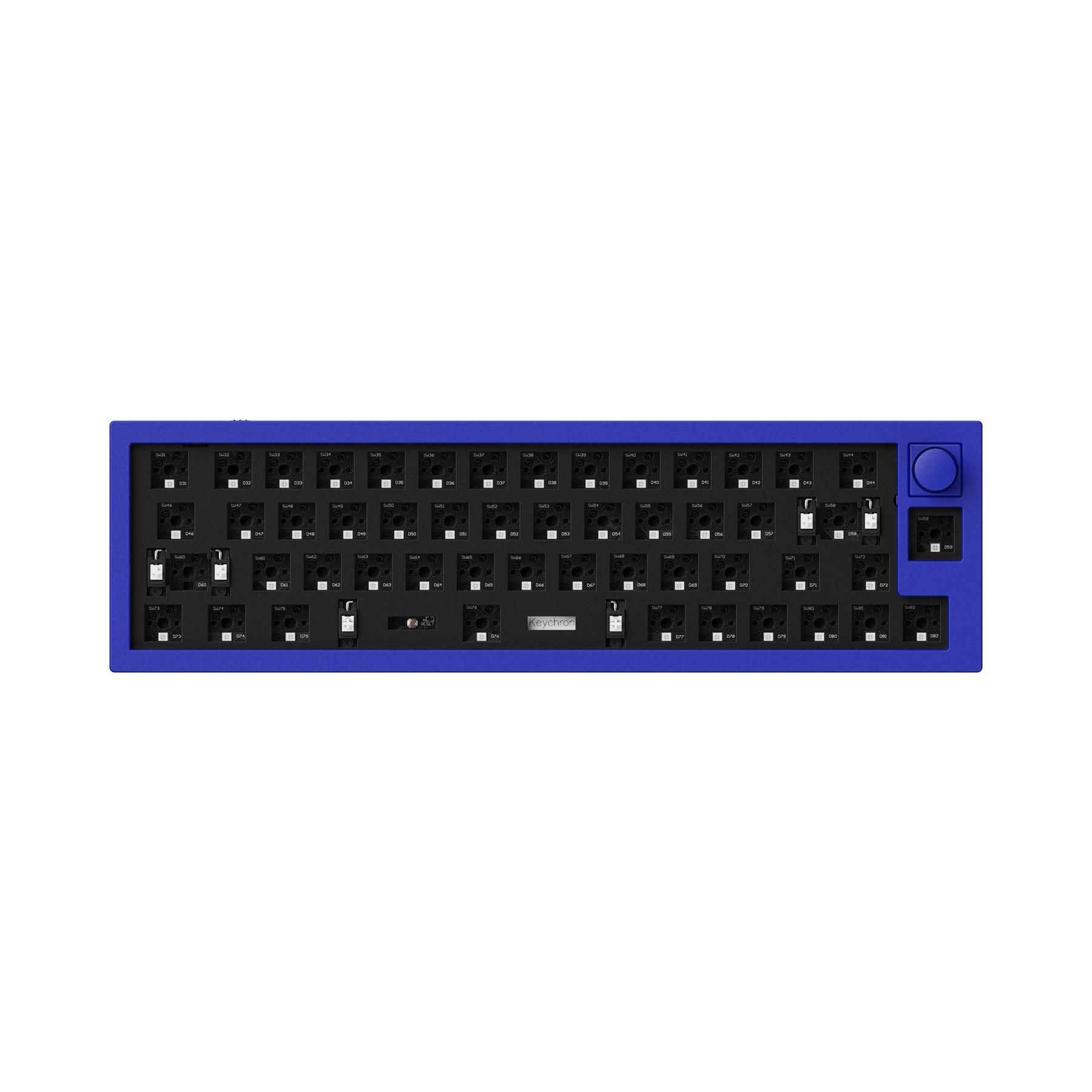

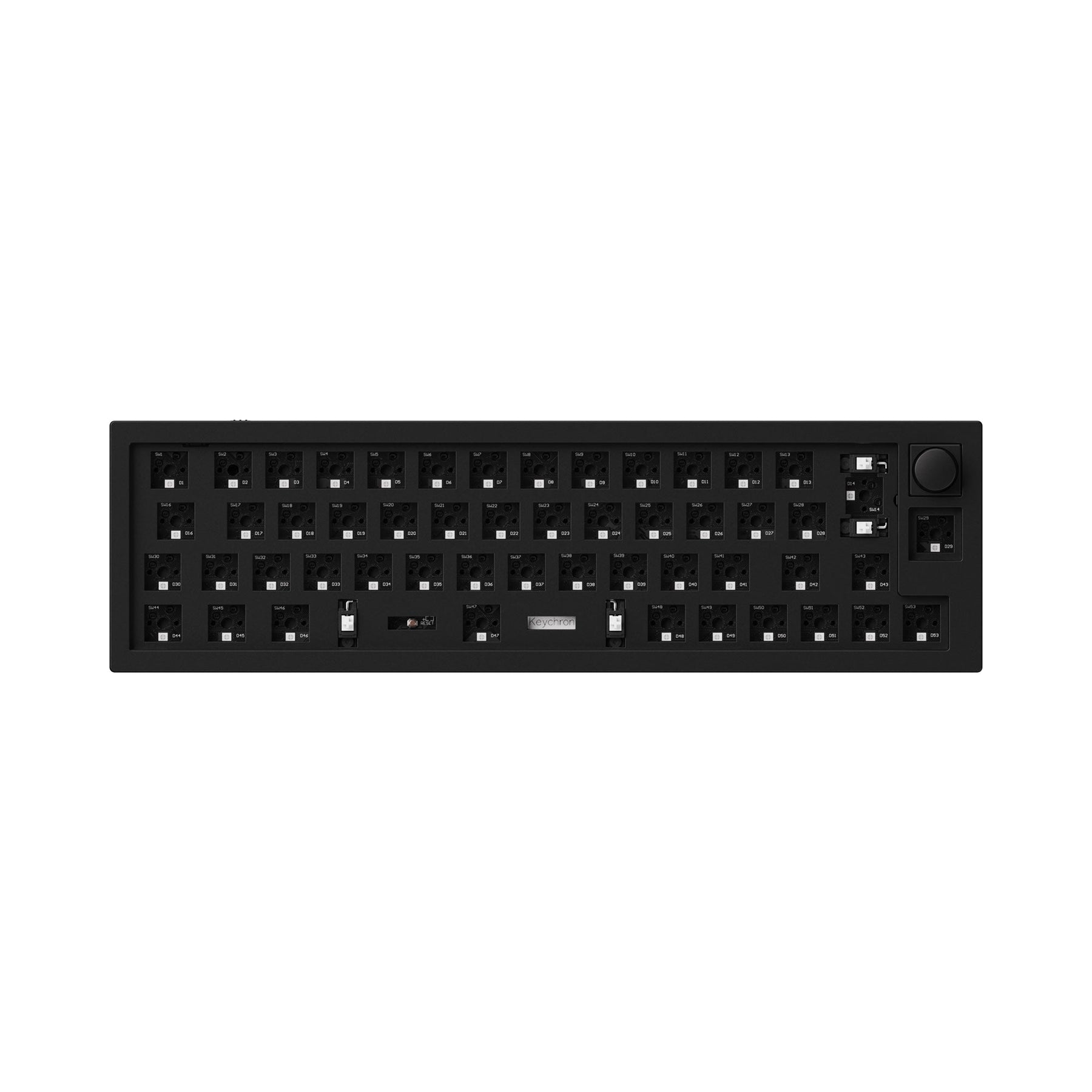

The barebone version does not include the keycaps and switches.
No discount codes can be used for Q9.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Keychron Q9 Plus 40% Percent Layout Mini Custom Mechanical Keyboard

Keychron Q9

The Q9 and its Plus Versions with split spacebar are 40% ultra-mini all-metal custom keyboards ideal for various situations and will upgrade your typing experience. With full aluminum CNC machined body, double-gasket design, and QMK/VIA support, they are the ultimate choice for ultra-mini keyboards.

Keychron Q9 40% Percent Layout Mini Custom Mechanical Keyboard

Keychron Q9

Keychron Q9 Plus 40% Percent Layout Mini Custom Mechanical Keyboard

Keychron Q9 Plus Version

Q9 Plus Version

The Plus Version offers a split-spacebar design to get the function key, the left spacebar, and the right spacebar. Or you can remap the split keys to your liking (Backspace, Delete, etc.), which makes your thumb hit more accessible and functional.

Keychron Q9 Plus 40% Percent Layout Mini Custom Mechanical Keyboard
Keychron Q9 Plus 40% Percent Layout Mini Custom Mechanical Keyboard
Features of Keychron Q9 40% Percent Layout Mini Custom Mechanical Keyboard
Customize Your Q9 / Q9 Plus

Choose the keycaps, switches, and more accessories for your Q9 / Q9 Plus

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q9.

Keychron Q9 40% Percent Layout Mini Custom Mechanical Keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.

Keychron Q9 40% Percent Layout Mini Custom Mechanical Keyboard

Double Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

Double Gasket Design of Keychron Q9 40% Percent Layout Mini Custom Mechanical Keyboard
OSA Profile Double-shot PBT Keychron Q9 40% Percent Layout Mini Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A brand new ultra-low-power MCU Arm structure that is powerful and armed with 128K Flash to provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.

OSA Profile Double-shot PBT Keycaps

For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

OSA Profile Double-shot PBT Keychron Q9 40% Percent Layout Mini Custom Mechanical Keyboard
Keychron Q9 40% Percent Layout Mini Custom Mechanical Keyboard

Switch layouts between macOS & Windows

Built with the Mac users' experience in mind while still retaining compatibility for Windows devices, the Keychron Q9 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Rotary encoder function of Keychron Q9 40% Percent Layout Mini Custom Mechanical Keyboard

You can easily customize the Q9's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Program Q1 Max with QMK
launcher__PID:d730f5d3-a618-40f3-b580-f4130947594c

Program with QMK & Launcher.

Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the Keychron Launcher Web App.

Click here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Note: The Q9's top case has sharper corners to make it much more compatible with third-party keycaps.

Barebone US layout of Keychron Q9 40% Percent Layout Mini Custom Mechanical Keyboard

Pre-lubed Gateron G Pro & Keychron K Pro Switches

By optimizing the switch mold, these Pro switches wobbles less than the standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed switches will ensure the best fingertip smoothness. Not to mention the K Pro banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Note: The Gateron G Pro Switches are mounted on the Q9 Fully Assembled Version, while the Keychron K Pro Switches are on the Q9 Plus Fully Assembled Version.

Gateron G Pro Switch Features
All New Screw-In PCB Stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q9 also supports third-party stabilizers, including Cherry or Durock.

ANSI & ISO layouts.

ISO layout is widely used in Europe while the ANSI layout is widely used by the rest of the world.

Note: If you are a European, we recommend you purchase the "Barebone ISO” version with the corresponding ISO keycaps. The "Barebone ISO” is suitable for all ISO keyboard countries like the UK, Germany, France, Italy, Spain, Denmark, Norway, Sweden, Finland, Iceland, etc.

ANSI Layout

ISO Layout

What's in the box?

Package List of the Keychron Q9/ Q9 Plus 40% Layout Mini Custom Mechanical Keyboard Fully Assembled Knob Version
Package List of the Keychron Q9/ Q9 Plus 40% Layout Mini Custom Mechanical Keyboard Barebone Knob Version

Specs

Width94.1 mm
Length326 mm
Front Height19.6 mm (without keycaps)
Back Height30.7 mm (without keycaps)
Feet Height2.5 mm
Angle 5.2°
Weight1050 g ± 10g (Fully Assembled Version)
Body Material Full CNC machined aluminum
PlateSteel
Polling Rate1000Hz
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
SwitchesGateron G Pro (Q9 Fully Assembled Version) or Keychron K Pro (Q9 Plus Fully Assembled Version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C  wired
CableType-C cable + Type-A to Type-C adapter
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment-10℃ to 50℃

Learn more about the Keychron Q9 / Q9 Plus such as the shortcuts, assembling guide, factory reset, and more in the FAQ section.
