Keychron Q15 Max QMK Wireless Custom Mechanical Keyboard(US ANSI Layout)
Keychron Q15 Max QMK Wireless Custom Mechanical Keyboard(US ANSI Layout) - Fully Assembled Knob / Black / Gateron Jupiter Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- The keyboard PCB, the case, and the PC plate.
- Keycaps (included Mac & Windows keycaps).
- Switches.

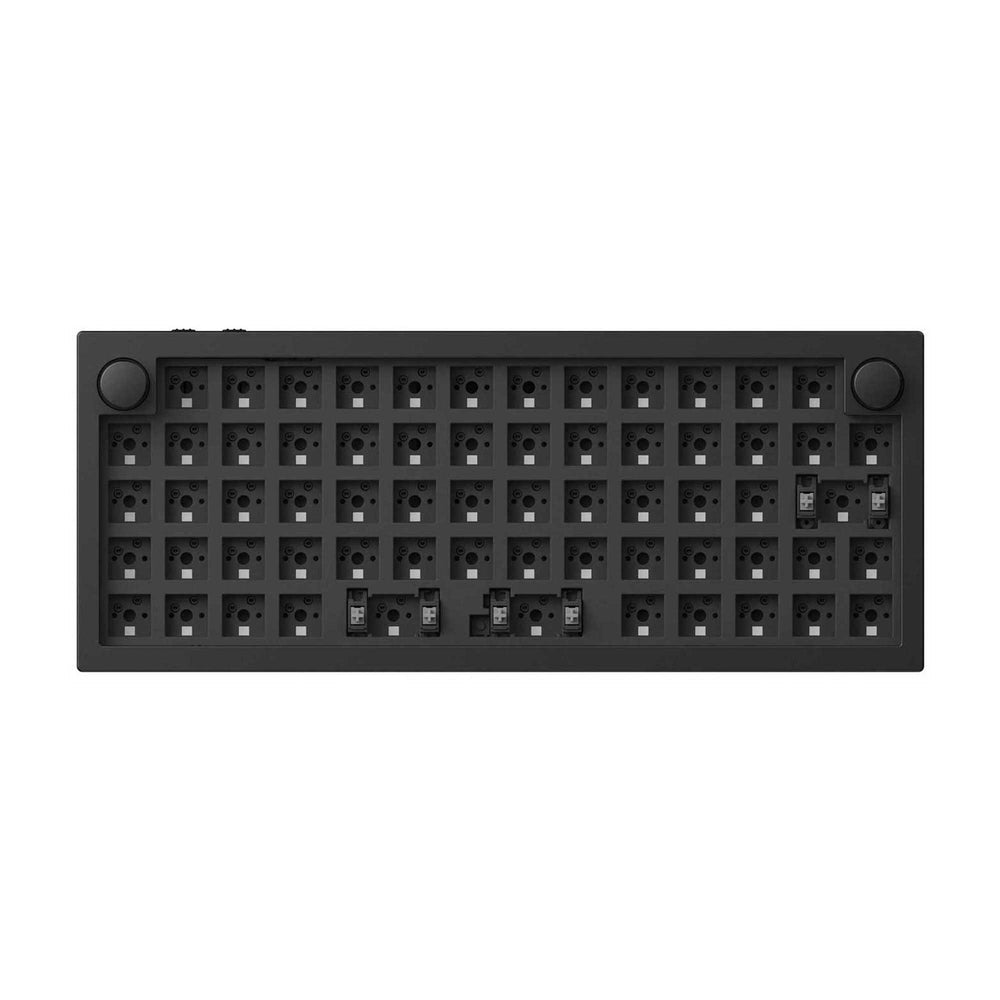

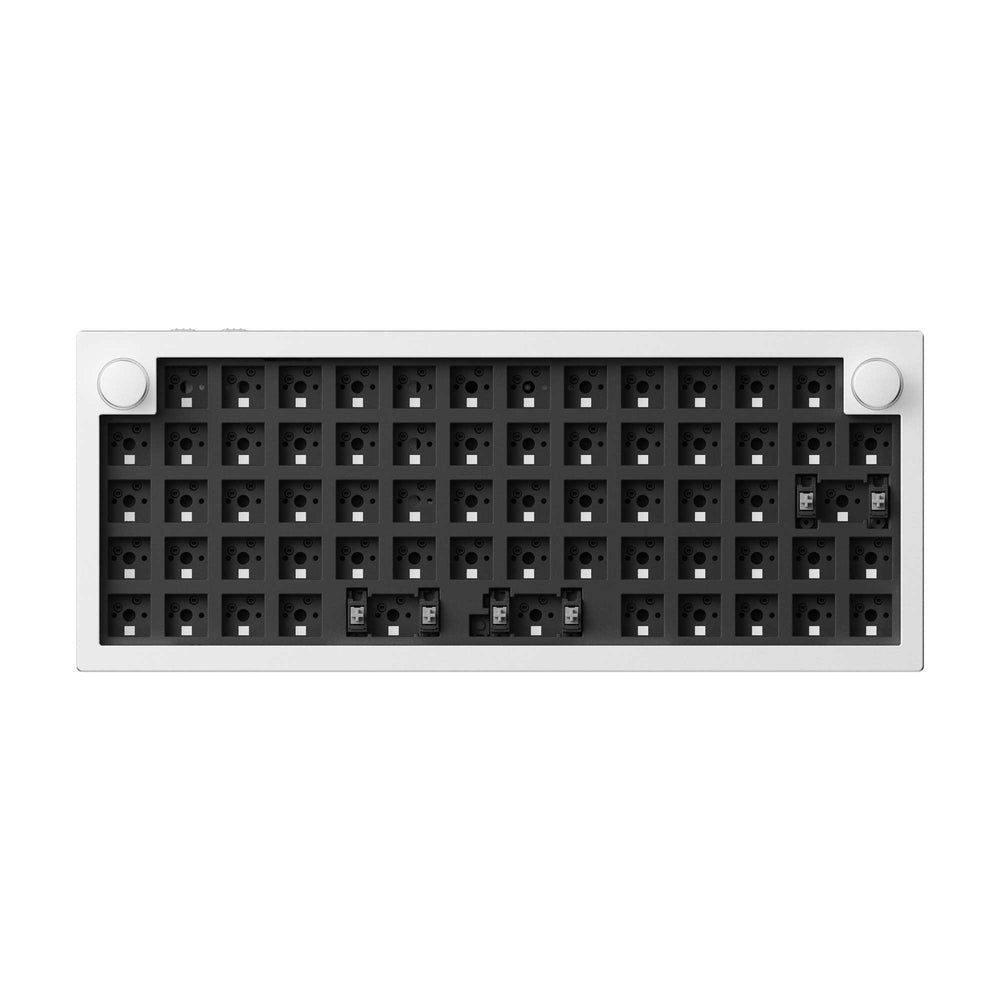

The Barebone version does not include the keycaps and switches.
Click the "Notify Me When Available" button if you want the white model so you'll be notified when it arrives in a few days.

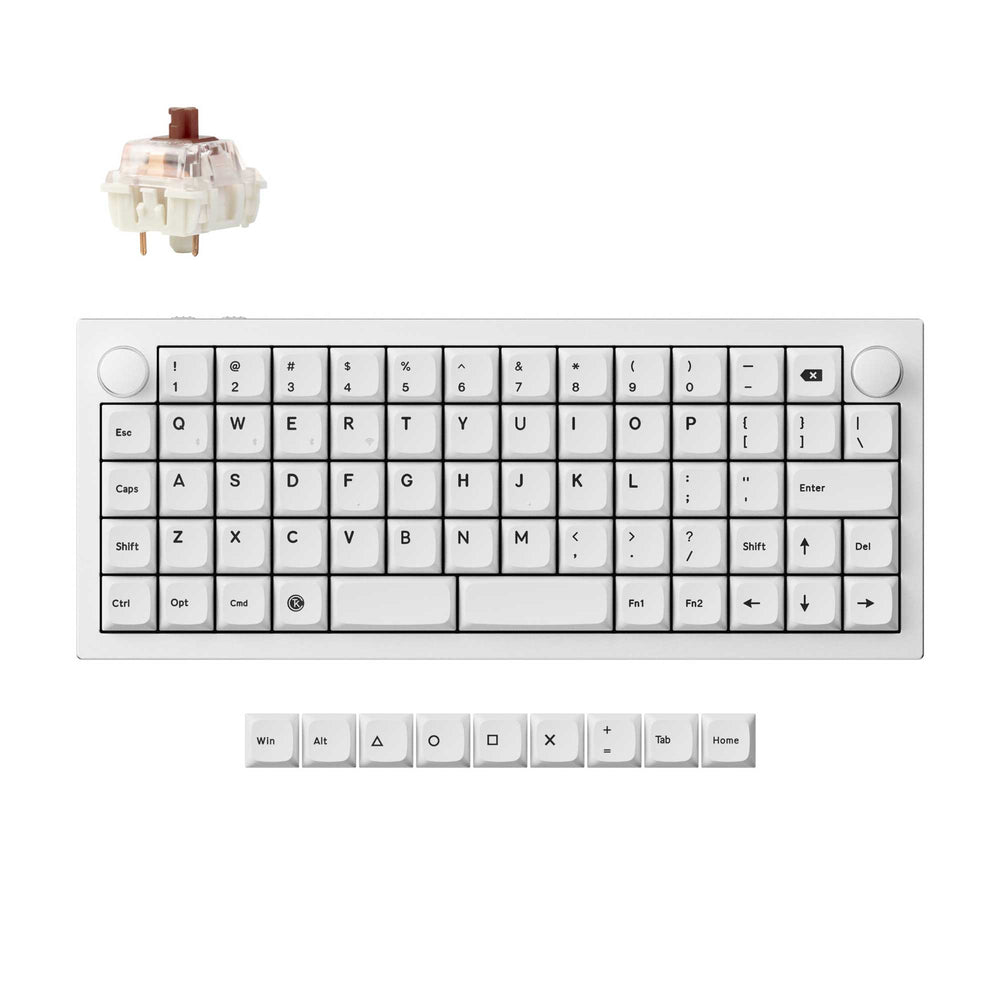

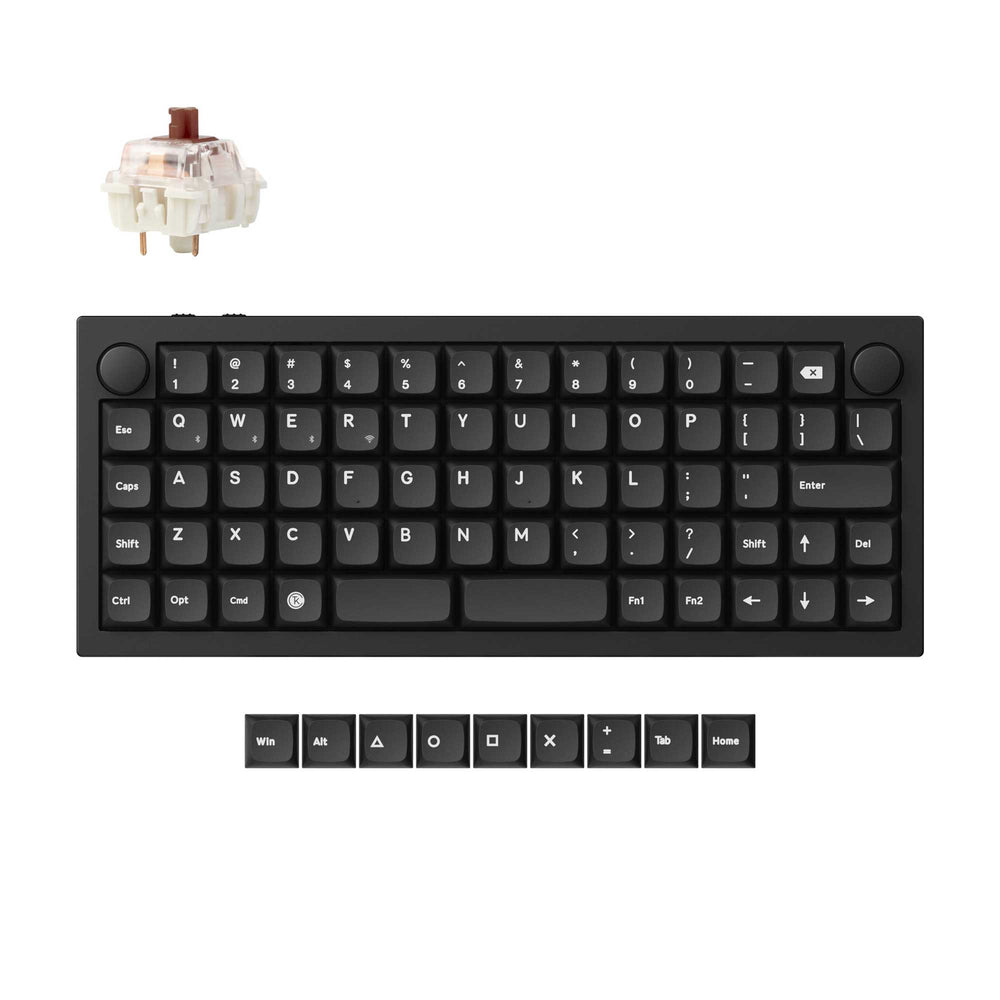

Keychron Q15 Max
Introducing the Keychron Q15 Max, a full metal ortholinear wireless QMK customized mechanical keyboard that features equally sized keys and a compact gridded layout. It is designed with two programmable knobs, a split-spacebar design, and supports 2.4G wireless, Bluetooth 5.1 connectivity. The built-in multiple layers of acoustic foams, combined with the double-gasket design, ensuring a superior sound quality with every keystroke.
Paired with many other premium features, such as the PBT keycaps, screw-in stabilizers, and more, the Keychron Q15 Max promises an unparalleled typing journey that transcends expectations.
Ortholinear Layout Design
Ortholinear keyboards is a compact yet functional keyboard with equally sized keys that are arranged in a grid pattern. This layout can improve comfort, speed, and accuracy by reducing finger movement and strain for a faster and more efficient typing experience.
2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q15 Max via Bluetooth 5.1 to three devices.
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q15 Max.
Significantly Enhanced Acoustic Foams
Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.
Easy Assemble
We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.
An Epic Core Inside The Keyboard
A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.
Gasket Mount Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.
Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate. This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
XDA Dye-Sub PBT Keycaps
These PBT keycaps are sculpted in XDA profile, with uniform height for maximum layout compatibility. It features ultra durable dye-sub legends that offers a solid build and wildly satisfying feel for long-term use.
Suitable for All Devices
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q15 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program with QMK & Launcher.
Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the Keychron Launcher Web App.
* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Hot-Swappable
Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the Q15 Max with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.
South-Facing RGB
Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with Keychron Launcher.
Gateron Jupiter Switch
Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.

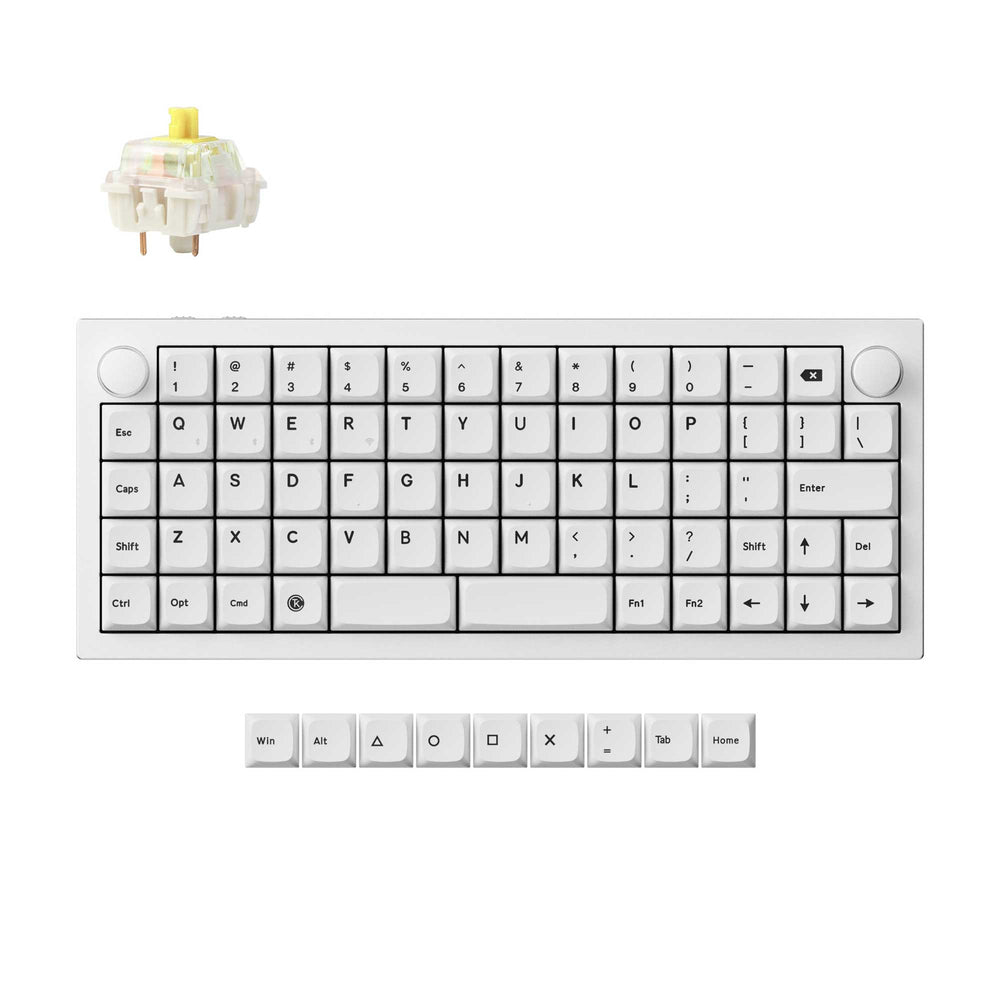

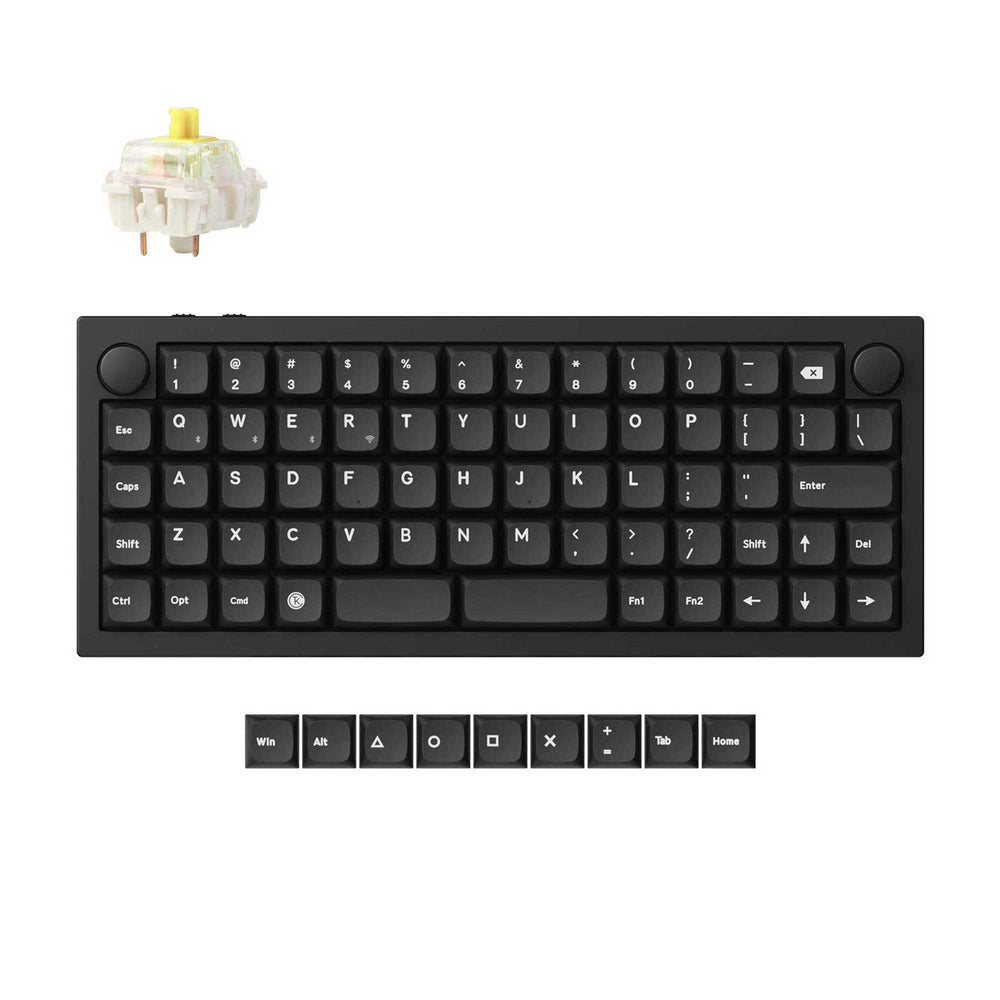

The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.
PCB Stabilizers
No detail is too insignificant when it comes to your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as the space bar, shift, enter, and delete keys. You can even customize your favorite stabilizers on your own.
What's in the box?
Frequently bought together (Add-on)
Select the matching variant for your product.
Specs
Width | 114 mm |
---|---|
Length | 283.05 mm |
Front Height | 21.35 mm (without keycaps) |
Back Height | 34.49 mm (without keycaps)
|
Feet Height | 2.71 mm |
Angle | 7° |
Weight | 1232 g ± 10 g (Fully Assembled version) |
Body Material | Aluminum |
Plate | PC |
Keycap | Keycap |
---|---|
Switch | Gateron Jupiter (Fully Assembled version)
|
Stabilizer | Screw-in PCB stabilizer |
Backlight | South-facing RGB LED |
Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. |
MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
Polling Rate | 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth) |
N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
Battery | 4000 mAh Rechargeable li-polymer battery |
---|---|
Wireless Working Time (Backlit off) | Up to 180 hours (Lab test result may vary by actual use) |
Wireless Working Time (RGB) | Up to 100 hours (Lowest brightness) |
Bluetooth Version | 5.1 |
Compatible System | macOS/Windows/Linux |
Connectivity | 2.4 GHz / Bluetooth / Type-C wired |
Bluetooth Device Name | Keychron Q15 Max |
Operating Environment | -10 to 50℃ |
Learn more about the Keychron Q15 Max such as the Q15 Max shortcuts, assembling the Q15 Max, factory reset, and more in the FAQ section.
