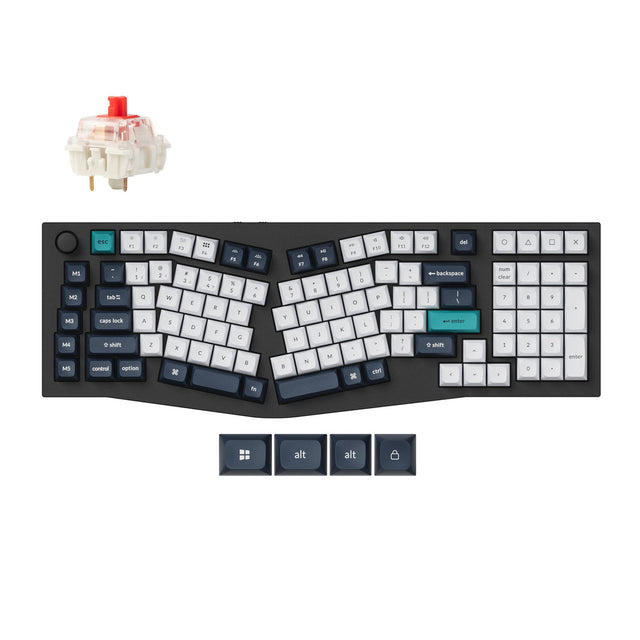

Keychron Q13 Max (Alice Layout) QMK Wireless Custom Mechanical Keyboard

SKU: Q13M-M1
€189,55 €223,00

Type
Color
Switches

The Fully Assembled version includes:
  •  The keyboard PCB, the case, and the PC plate.
  • Keycaps (included Mac & Windows keycaps).
  • Switches.

The Barebone version does not include the keycaps and switches.

No discount codes can be used for the Q10 Max.
Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard

Keychron Q13 Max

Meet the Keychron Q13 Max, a full-metal wireless custom mechanical keyboard featuring a unique 96% Alice layout. Upgraded with a 2.4 GHz wireless connection at a 1000 Hz polling rate and Bluetooth 5.2, it elevates the typing experience further. Thoughtfully designed with multiple layers of acoustic foam, it ensures premium sound quality with every keystroke.

Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard

Paired with many other premium features, such as the double-gasket design, PBT keycaps, screw-in stabilizers, and more, the Keychron Q13 Max promises an unparalleled typing journey that transcends expectations.

Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard
Features of Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard
Customize Your Q13 Max

Choose the keycaps, switches, and more accessories for your Q13 max.

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q13 Max via Bluetooth 5.2 to three devices.

Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q13 Max.

Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard

Significantly Enhanced Acoustic Foams

Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.

Easy Assemble

We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.

Structure of Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard
Structure of Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard
Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.

Gasket structure of Keychron Q10 Max 75% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard
Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard

Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate. This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

KSA Double-Shot PBT Keycaps

To further fine-tune your typing experience, we designed our unique Keychron spherical-angle (KSA profile) double-shot keycap set with premium non-backlight shine through PBT material, that is oil-resistant and durable for long-term use.

KSA Double-Shot PBT Keycaps
KSA Double-Shot PBT Keycaps
Keychron-Q13-Max-OS-Toogle.jpg__PID:aa1f1b3a-27c0-48db-9b36-8607d7ee1218

Suitable for All Devices

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q13 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Keychron Q6 Max QMK/VIA Wireless Custom Mechanical Keyboard
Launcher

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Keychron Q13 Max Launcher
Click here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Keychron Q6 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron-Q13-Max-Hot-Swappable.jpg__PID:27c0f8db-5b36-4607-97ee-12185addda2c

Hot-Swappable

Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the Q13 Max with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.

South-Facing RGB

Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with Keychron Launcher web app and QMK.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Keychron-Gateron-Jupiter-MX-mechanical-switch-red-brown-banana.webp__PID:297c3cd7-84e1-4b2c-add3-aa1daf03974a

PCB Stabilizers

No detail is too insignificant when it comes to your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as the space bar, shift, enter, and delete keys. You can even customize your favorite stabilizers on your own.

PCB Stabilizers

What's in the box?

Package list of Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard
Package list of Keychron Q13 Max 96% Alice Layout QMK/VIA Wireless Custom Mechanical Keyboard
Differences Among the Q Max, Q Pro, and Q Series Keyboards

Specs

Width156.85 mm
Length447.29 mm
Front Height20.30 mm (without keycaps)
Back Height31.82 mm (without keycaps)
Height without keycap (rear) 47.93 mm
Height incl. keycap (front) 32.84 mm
Feet Height 2 mm
Angle
Weight 2405 g ± 10 g (Fully Assembled version)
Body Material Full CNC machined aluminum
Plate Material PC
Keycap KSA double-shot PBT keycaps, not shine-through (Fully Assembled version)
Switch Gateron Jupiter (Fully Assembled version)
Stabilizer Screw-in PCB stabilizer
Backlight South-facing RGB LED
Battery 4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off) Up to 300 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB) Up to 100 hours (Lowest brightness)
Bluetooth Version 5.2
Hot-swappableYes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Polling Rate1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth)
N-Key Rollover (NKRO)Yes for both wireless and wired modes
Compatible System macOS/Windows/Linux
Connectivity 2.4 GHz / Bluetooth / Type-C wired
Bluetooth Device Name Keychron Q13 Max
Operating Environment -10 to 50℃
Keychron Q13 Max User Guide

Learn more about the Keychron Q13 Max such as the Q13 Max shortcuts, assembling the Q13 Max, factory reset, and more in the FAQ section.
