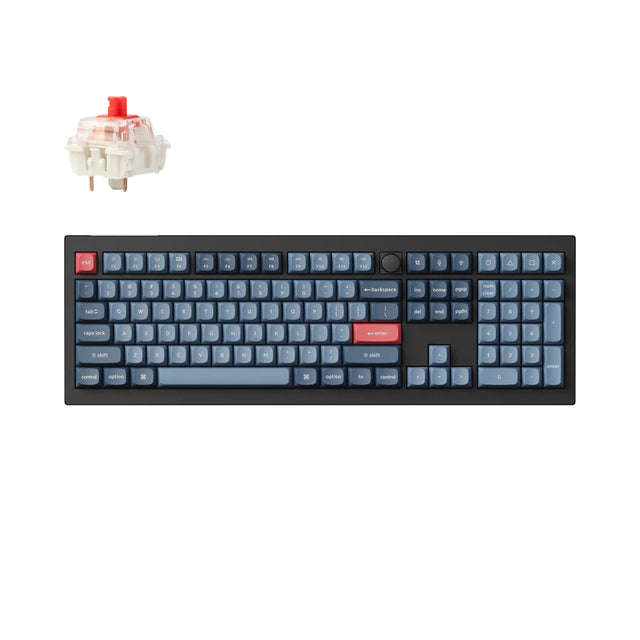

Keychron V6 Max QMK/VIA Wireless Custom Mechanical Keyboard (US ANSI Layout)
Keychron V6 Max QMK/VIA Wireless Custom Mechanical Keyboard (US ANSI Layout) - Fully Assembled Knob / Carbon Black / Gateron Jupiter Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- ABS plastic housing
- The keyboard PCB, screw-in stabs, and the PC plate
- Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
- Gateron Jupiter switches
The barebone version does not include the keycaps and switches.
No discount codes can be used for V6 Max.
Please drop your email on "Notify Me When Available" if the product model is out of stock.
Keychron V6 Max QMK/VIA Wireless Custom Mechanical Keyboard (US ANS...
Keychron V6 Max
The V6 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a full-size 100% layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V6 Max is designed for a personalized experience and enhanced typing comfort.
This is your heading text.
Choose the keycaps, switches and more accessories for your V6 Max
2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V6 Max via Bluetooth 5.1 to three devices.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.
Dual Receivers
For a better 2.4 GHz wireless experience, the V6 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.
An Epic Core Inside The Keyboard
These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
OSA Profile Double-shot PBT Keycaps
These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V6 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Gasket Mount Design
By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V6 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.
Program V6 Max with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.
Get the V1 keymap working on VIA
To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V1 keymap working on VIA.
Since the VIA code for the V1 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the V1 keymap.
Note: Only the right JSON file can be input, please find the right version keymap JSON file which matches your keyboard to download.
V1 Knob Version Keymap JSON Files
V1 Non-Knob Version Keymap JSON Files
Get the V6 Max keymap working on VIA
Since the VIA code for the V6 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the V6 Max keymap working on VIA
Hot-swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.
South-facing RGB LED Lights
Gateron Jupiter Switch
Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.
Screw-In PCB Stabilizers
Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V6 Max also supports third-party screw-in PCB stabilizers.
What's in the box?
Specs
| Width | 149 mm |
|---|---|
| Length | 447.9 mm |
| Front Height | 23.6 mm (without keycaps) |
| Back Height | 32.5 mm (without keycaps) |
| Feet Height | 2 mm |
| Angle | 3.5° /8° / 10° |
| Weight | 1110 ± 10 g (Fully Assembled Version) |
| Body Material | ABS Plastic |
| Plate | PC |
| Polling Rate | 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode) |
| Mount Style | Gasket Mount Design |
| Battery | 4000 mAh Rechargeable li-polymer battery |
|---|---|
| Wireless Working Time (Backlit off) | Up to 225 hours (Lab test result may vary by actual use) |
| Wireless Working Time (RGB): | Up to 100 hours (Lowest brightness) |
| Charging Time | Around 5 hours |
| Bluetooth Version | 5.1 |
| Compatible System: | Windows/macOS/Linux |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Hot-swappable: | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc. |
| Keycaps (Fully Assembled Version): | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
|---|---|
| Switches: | Gateron Jupiter (Fully Assembled Version) |
| MCU: | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Backlight: | South-facing RGB LED |
| Stabilizer: | Screw-in PCB stabs |
| Charging Port: | USB Type-C |
| Cable: | Type-C cable + Type-A to Type-C adapter |
| Bluetooth Device Name: | Keychron V6 Max |
| Operating Environment: | -10℃ to 50℃ |
Learn more about the Keychron V6 Max such as the V6 Max shortcuts, assembling the V6 Max, factory reset, and more in the FAQ section.
