Keychron Q3 Max QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection

SKU: Q3M-M1-DE
€209,00

Type
Layout Version
Switches

The Fully Assembled version includes:
  •  The keyboard PCB, the case, and the PC plate.
  • Keycaps (included Mac & Windows keycaps).
  • Switches.



ISO options: German, Nordic, UK, Swiss.

No discount codes can be used for the Q3 Max.

Keychron Q3 Max

ISO Layout Collection

Keychron Q3 Max ISO 80% Layout Wireless Custom Keyboard

The Q3 Max Keyboard, featuring an 80% TKL layout, combines advanced 2.4G wireless, Bluetooth, and Type-C wired connectivity, enhances workspaces by reducing clutter and facilitating efficient remote work. Its upgraded acoustic foam not only ensures quieter typing but also elevates the tactile experience, making each keystroke smoother and more refined.

Features of Keychron Q3 Max ISO 80% Layout Wireless Custom Keyboard
Customize Your Q3 Max ISO

Choose the switches and more keyboard accessories for your Q3 Max

Q3 Max ISO Layout Versions

These versions include the UK, German, Swiss, and Nordic layouts, all with extra keycaps suitable for Mac and Windows devices.

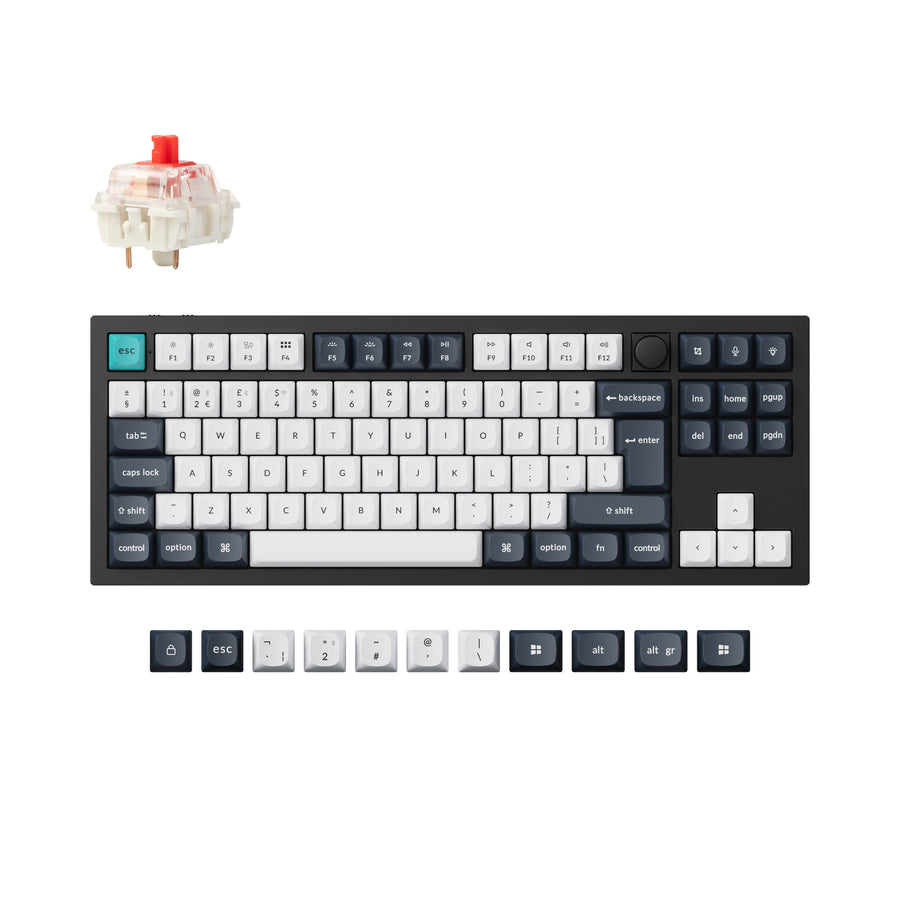

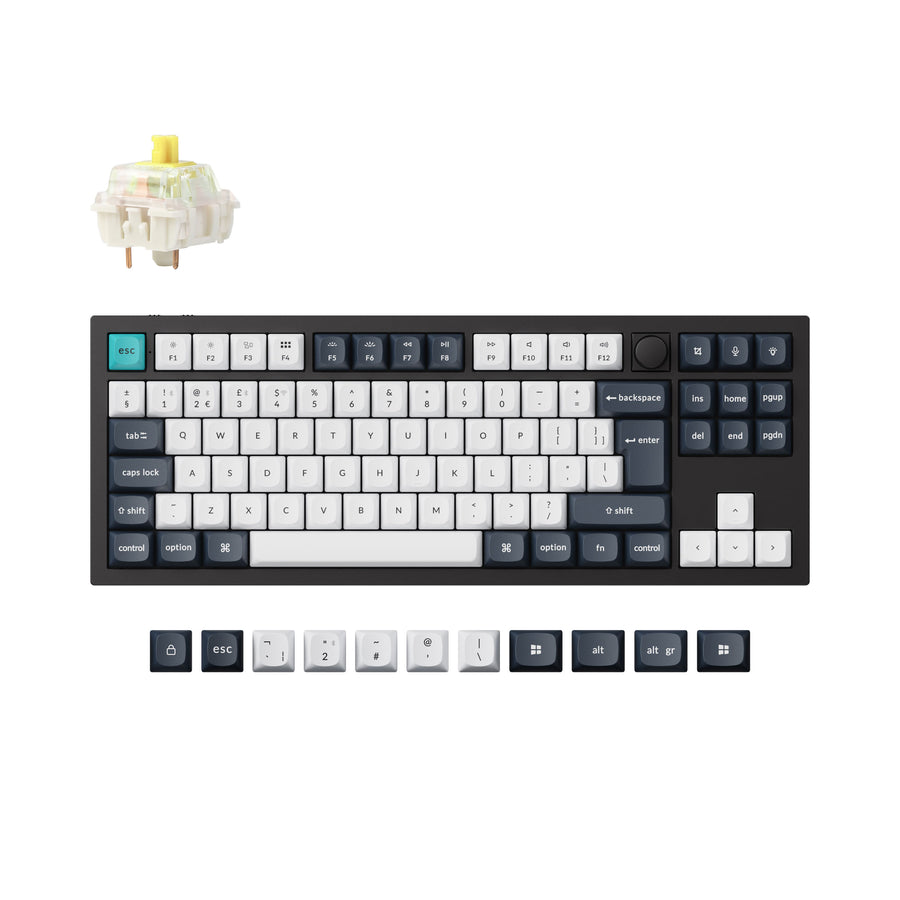

🇬🇧 UK-ISO Layout

🇩🇪 German DE-ISO Layout

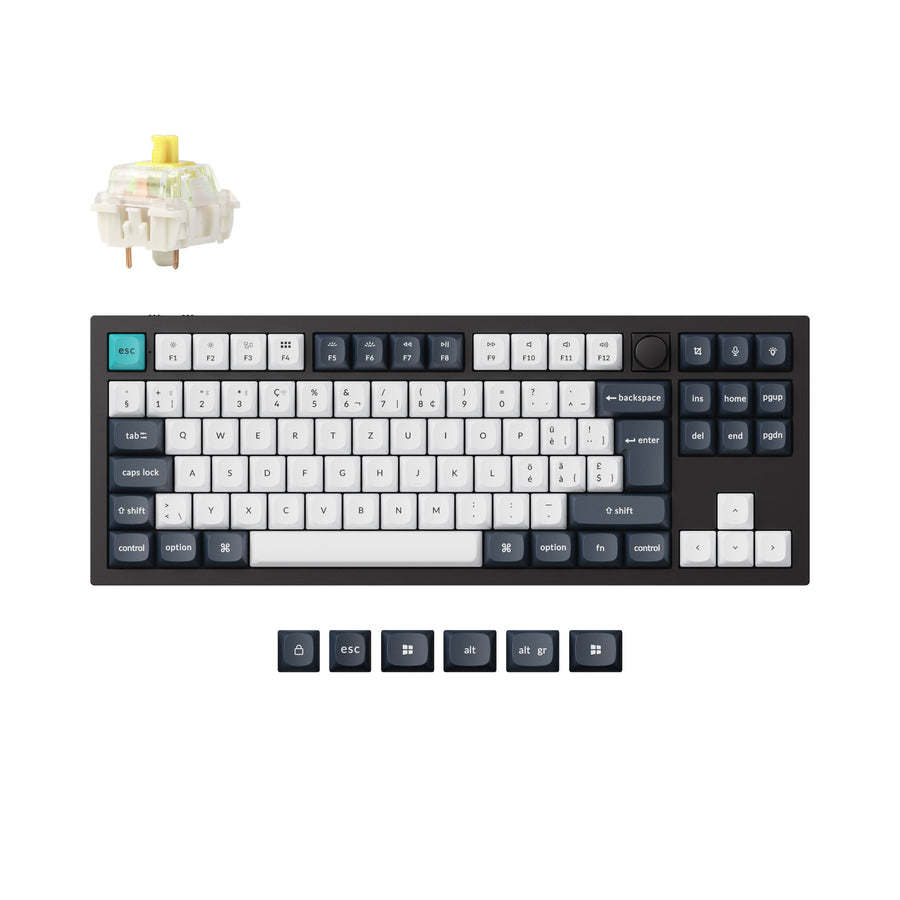

🇨🇭Swiss-ISO Layout

🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout

2.4 GHz & Bluetooth Connection

Discover enhanced performance with the Q3 Max Keyboard, featuring a 2.4 GHz wireless connection and a rapid 1000 Hz polling rate for responsive use. It also offers Bluetooth 5.1 connectivity, allowing easy and efficient multitasking by connecting with up to three devices, such as your computer, phone, and tablet, with quick switching capability.

Keychron Q3 Max ISO 80% Layout Wireless Custom Keyboard

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q3 Max.

Keychron Q3 Max ISO 80% Layout Wireless Custom Keyboard

Significantly Enhanced Acoustic Foams

Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.

Easy Assemble

We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.

Structure ofKeychron Q3 Max ISO 80% Layout Wireless Custom KeyboardStructure ofKeychron Q3 Max ISO 80% Layout Wireless Custom Keyboard
Keychron Q3 Max ISO Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

Q3 Max ISO 80% Layout Wireless Custom Keyboard
Keychron Q3 Max ISO 80% Layout Wireless Custom Keyboard

Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate. This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

OSA Double-Shot PBT Keycaps

To further fine-tune your typing experience, the Q3 Max ISO comes with our unique OSA profile (OEM profile with spherical-angle) and double-shot PBT keycaps that aim to provide a more comfortable fingertip feel with excellent oil resistance for long-term use on the TKL layout.

Keychron Q3 Max ISO 80% Layout Wireless Custom Keyboard
Keychron Q3 Max ISO 80% Layout Wireless Custom Keyboard

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility with Windows devices, the Keychron Q3 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Programmable Knob

Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

q3max-page__PID:33bcf5be-3a2f-4ddd-ad33-d3e310cf6710

You can easily customize the Q3 Max's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Setting the macros for "zoom in/out"

Using the knob as "zoom in/out"

Program Q1 Max with QMK
Keychron Launcher

Program with QMK & Launcher.

Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the Keychron Launcher Web App.

Click here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

macos, Windows and Linux icon
Hot-swappable feature of Keychron Q3 Max ISO 80% Layout Wireless Custtom Keyboard

Hot-Swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-Facing RGB

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.

Gateron Jupiter Switch Features
Screw-in PCB Stabilizers

PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron Q3 Max also supports third-party screw-in PCB stabilizers.

What's in the box?

Package list of Keychron Q3 Max ISO 80% Layout Wireless Custom KeyboaOrd

SPECIFICATION
Width 137 mm
Length 365 mm
Front Height 19.7 mm (without keycaps)
Back Height 32.6 mm (without keycaps)
Feet Height 2.7 mm
Angle 5.2°
Weight 2045g ± 10g (Fully Assembled Version)
Body Material Aluminum
Plate Material PC
Polling Rate 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth)
Backlight 22 types of RGB backlight options plus endless possibilities

CONNECTIVITY AND POWER
Switch Gateron Jupiter (Fully Assembled version)
Stabilizer Screw-in PCB stabilizer
Backlight South-facing RGB LED
Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
N-Key Rollover (NKRO) Yes for both wireless and wired modes
Operating Environment -10 to 50℃
Keycaps (Fully Assembled Version) OSA double-shot PBT keycaps, not shine-through (Fully Assembled version)
Switch Support Hot-swappable (5 pin & 3 pin)

PHYSICAL UNIT
Battery 4000 mAh Rechargeable li-polymer battery
BT Working Time (Backlit off) Up to 180 hours (Lab test result may vary by actual use)
BT Working Time (RGB) Up to 100 hours (Lowest brightness)
Bluetooth Version 5.1
Compatible System macOS/Windows/Linux
Connectivity 2.4 GHz / Bluetooth / Type-C wired
Bluetooth Device Name Keychron Q3 Max
Cable Type-C cable + Type-A to Type-C adapter
Charging Time Around 5 hours
Cable Length 1.8 m
Operating Environment -10 to 50℃

Keychron Q3 Max User Guide

Learn more about the Keychron Q3 Max such as the Q3 Max shortcuts, assembling the Q3 Max, factory reset, and more in the FAQ section.
