Please note that the frame color may be slightly different from other Q series keyboards as the Q0 Plus was manufactured separately.
Keychron Q0 Plus
The Q0 Plus is a custom number pad with a macro column and rotary encoder knob on the left side, serving either as a separate numeric keypad or a vast customizable array of keysets with QMK/VIA support. Added new double-gasket design, and with all-metal CNC machined body, screw-in stabs, hot-swappable feature, etc., it can best optimize your workflow and improve productivity!
Choose the keycaps, switches and more accessories for your Q0 Plus.
Premium Metal Gadget
The mini metal body is crafted with 6063 aluminum that is processed through CNC machines, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make the Q0 Plus a beautifully crafted gadget for your desk.
Fully Customizable Number Pad

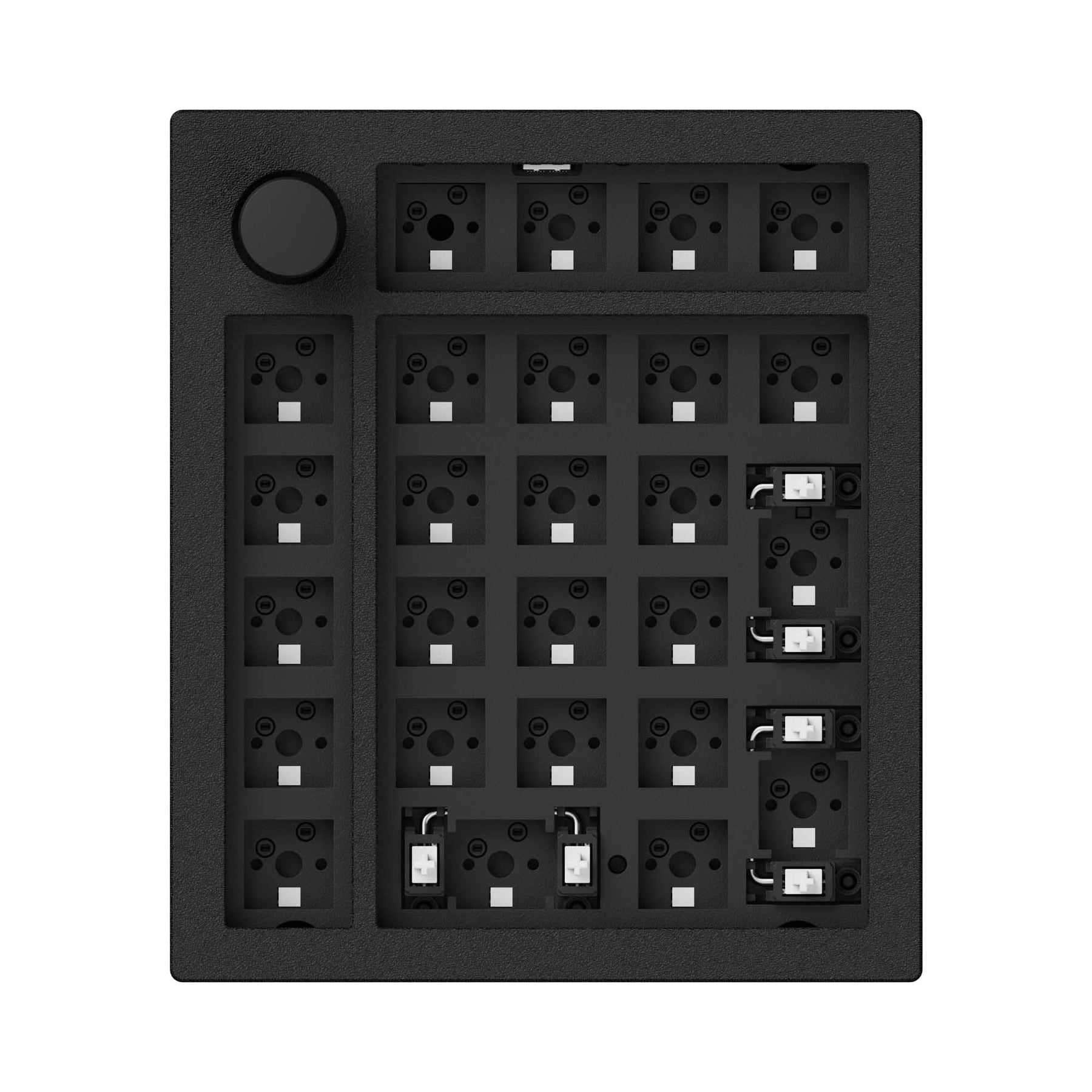

To build a fully customizable number pad, we designed every component easily assembled so you can customize and adjust each element as you wish.
Double Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
More Than A Number Pad. Program the Q0 Plus with QMK /VIA
With full QMK and VIA support, you can program and remap each key on this number pad with ease. The open-source firmware means endless possibilities for layouts, shortcuts, backlight effects, and more. Learn more about how to use VIA >
A powerful ultra-low-power ARM MCU structure that is powerful and equipped with 128K Flash to provide developers with more flexibility.
Get the Q0 Plus keymap working on VIA
Since the VIA code for the Q0 Plus is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file (ANSI or ISO) below, open VIA, turn on "Show Design tab" on "Settings" tab, enable "Use V2 definitions (deprecated)" on the "Design" tab, and drag the JSON file into the “Design” tab on VIA to get the Q0 Plus keymap working on VIA.
Download Keymap JSON forQ0 Plus ANSI/US
OSA Profile Double-shot PBT Keycaps
For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (0, +, enter) typing experience is now more stable and smoother. The Keychron Q0 Plus also supports third-party stabilizers, including Cherry or Durock.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the number pad backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the number pad.
Pre-lubed Gateron G Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q0 Plus version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.
What's in the box?
Specs
| Width | 137 mm |
|---|---|
| Length | 118.2 mm |
| Front Height | 20.1 mm (without keycaps) |
| Back Height | 32.6 mm (without keycaps) |
| Feet Height | 1.9 mm |
| Angle | 5.26° |
| Weight | 586 g ± 10g (Fully Assembled Version) |
| Body Material | Full CNC machined aluminum |
| Plate | Steel |
| Polling Rate | 1000Hz |
| Mounting Style | Gasket Mount |
| Keycaps (Fully Assembled Version) | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
|---|---|
| Switches | Gateron G Pro (Fully Assembled Version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Operating Environment | -10℃ to 50℃ |
Section
Drop element here!
Keychron Q0 Plus User Guide
Learn more about the Keychron Q0 Plus such as the Q0 Plus shortcuts, assembling the Q0 Plus, factory reset, and more in the FAQ section.
