Keychron Q5 Pro Acoustic Upgrade Kit
Keychron Q5 Pro Acoustic Upgrade Kit

Keychron Q5 Pro Acoustic Upgrade Kit

AUK-2

Regular price €10,00
/

Compatible Keyboard
Material

Please drop your email on "Notify Me When Available" if the product model is out of stock

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Austin Brown
Huge upgrade

This greatly improves the sound of the keyboard by default. No install instructions with is unfortunate, but the product is really solid otherwise. Well worth the price.

Keychron Q5 Pro Acoustic Upgrade Kit

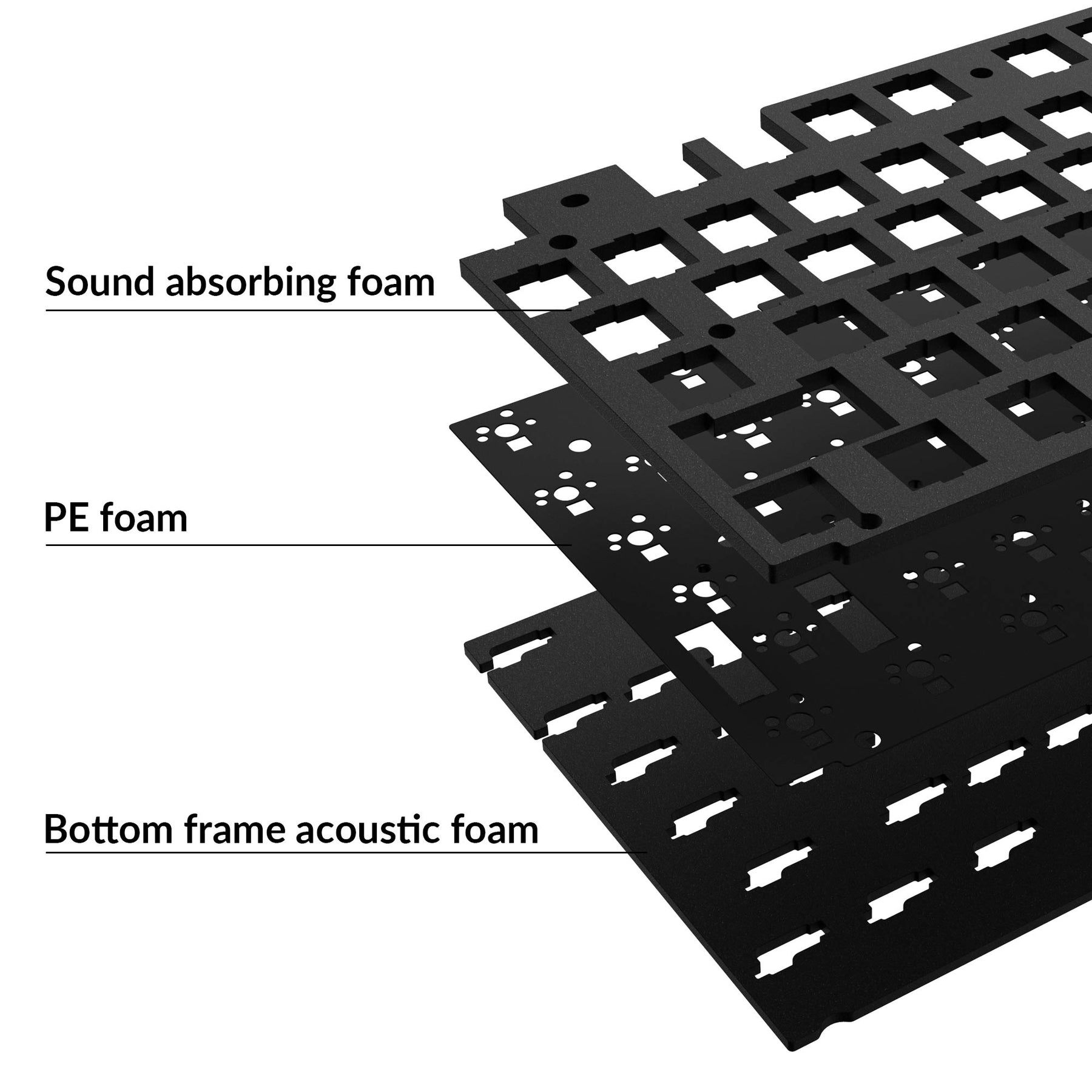

Want to optimize your Q5 Pro keyboard typing experience? Try this upgrade kit! Made of Poron & XPE material, the kit includes sound-absorbing foam, PE foam, and bottom frame acoustic foam, all to further modify your keyboard for an improved and enhanced typing experience.

Keychron Q5 Pro Acoustic Upgrade Kit

Foam modding the Q5 Pro with this acoustic upgrade kit can further eliminate the hollowness of the keyboard and reduces the resonance on each keystroke.

Foam mod the Q5 Pro with the acoustic upgrade kit

How to modify your Q5 Pro with this kit?

The entire keyboard needs to be taken apart for kit installation. You can refer to this video for disassembling guide first and then watch the following clip for kit installation.

00:00: Apply the PE foam on the keyboard PCB.
00:29: Place the sound absorbing foam between the plate and the PCB.
00:50: Place the acoustic foam on the bottom case.

Specs

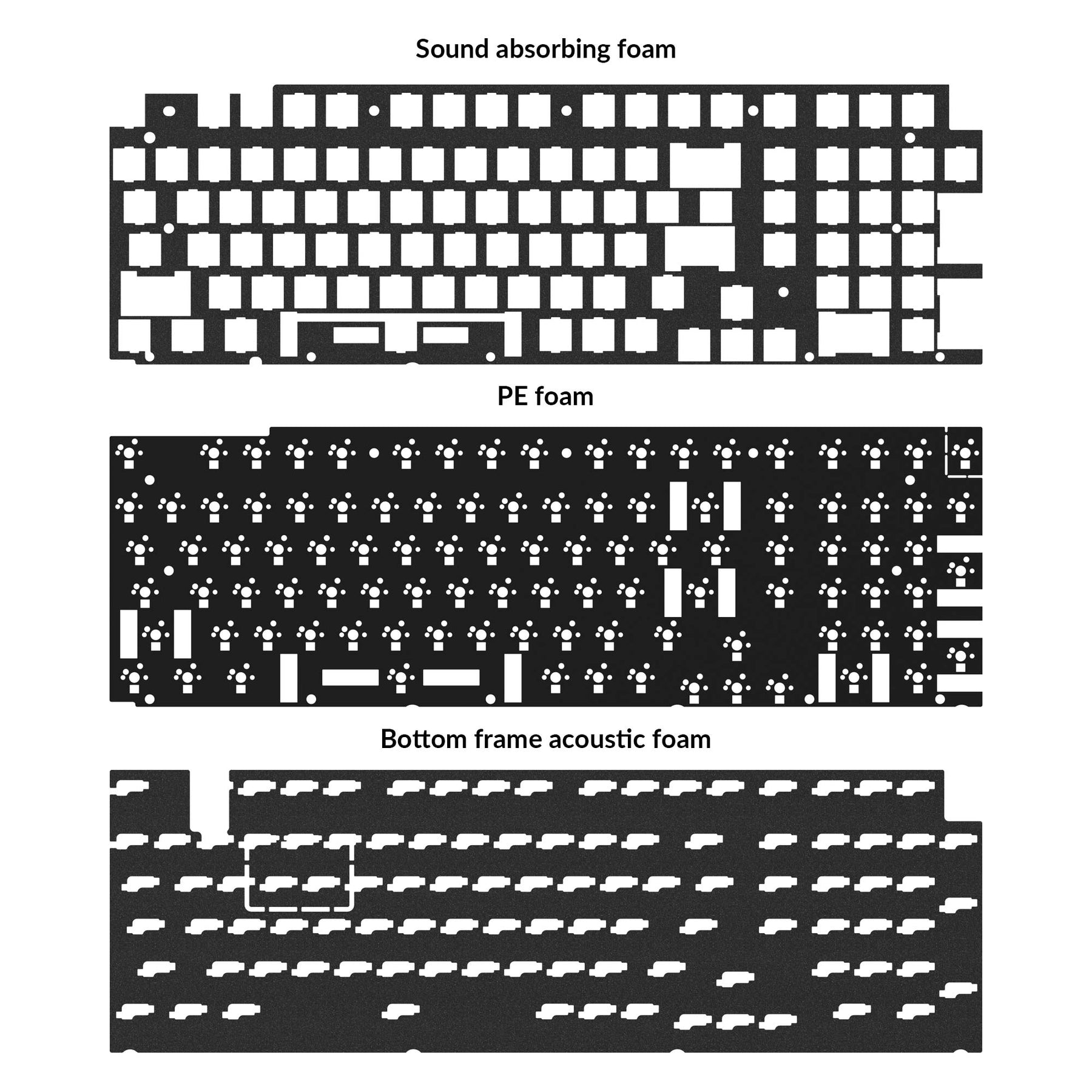

Package Contents MaterialThicknessSizeCompatible keyboard
1x Sound absorbing foamPoron3.5 mm389.65*125.10 mmKeychron Q5 Pro ANSI layout
1x PE foamXPE0.5 mm389.65*125.10 mmKeychron Q5 Pro ANSI layout
1x Bottom frame acoustic foamPoron2.5 mm390.90*106.77 mmKeychron Q5 Pro ANSI layout
4x Gasket

*XPE foam is a new high-grade PE material with better mechanical and physical properties in stability, durability, and insulation effects.
